Stepper Lead Screw Linear Actuator

Stepper Lead Screw Linear Actuator

DINGS' Stepper Lead Screw Linear Actuator come in eight different frame size from 14mm [NEMA6] to 86mm [NEMA34]. There are four form factors as External, Non-Captive, Kaptive and Electric Cylinder (Captive). DINGS' provides over 20 different travels/step of lead screws ranging from 0.00006 inch [.0015mm] to .005 inch [.127mm]. Microstepping can be used for finer resolution and various step motor angle options are available.

View Details
Stepper Ball Screw Linear Actuator

Stepper Ball Screw Linear Actuator

DINGS' Stepper Ball Screw Linear Actuator is avaiable for External from NEMA6 to NEMA23 sizes with various step resolutions from 0.005mm/step to 0.1mm/step. C7 ball screw is standard and C5 or C3 grade is optional. External type of Stepper Ball Screw Linear Actuator is standard and we also offer guide supported high precision linear actuator, DLG Series for 28 & 42mm stepper.

View Details
PM Stepper Linear Actuator

PM Stepper Linear Actuator

DINGS' Permanent Magnetic PM stepper linear actuators are available as 20/25/36mm sizes via External, Non-Captive and Kaptive especially for economic version of applications.

View Details
Hybrid Rotary Stepper Motor

Hybrid Rotary Stepper Motor

DINGS' provides 8 different sizes of hybrid stepper motors from 14mm to 86mm. Each size has multiple stack lengths. Single or dual shaft is standard but also customized shaft options are also available. In addition, various ratio of planetary gearboxes, encoders and power-off brakes are optional.

View Details
Hollow Shaft Stepper Motor

Hollow Shaft Stepper Motor

DINGS' provides standard and also customized hollow shaft motors from 14mm to 86mm sizes.

View Details
Brush DC Motors

Brush DC Motors

DINGS' Brush DC Motors have low mechanical loss, high power conversion efficiency but relatively save energy. The speed of Brush DC motor can quickly respond to change of voltage and meet the requirements of high speed and high precision control.

View Details
Brushless DC Motors

Brushless DC Motors

DINGS' provides 12 different sizes of Brushless DC motors have several advantages, including start and speed regulation, higher power density and over load capacity.
From 12mm to 130mm with power output ranging from 1.6W to 837W, DINGS' provides 12 frame sizes and according customer's requirements, higher capacity of Brushless DC Motors can be customized.

View Details
Slotless Brushless DC Motor

Slotless Brushless DC Motor

DINGS' Slotless Brushless DC Motors can avoid the pulsation of air gap magnetic induction caused by uneven magnetic resistance in the teeth. It can eliminate the pulse loss in the armature core and the surface loss on the main pole surface.
Slotless Brushless DC Motor has high durability, low electrical noise and high efficiency.
Maximum efficiency of motor reaches 91% and this motor is suitable for the servo system which needs quick movement and high power.

View Details
Options

DLM / DSM Series

Based on our company's platform product high-precision screw stepper motor, combined with linear guide rails, we have designed DLM series and DSM series simple modules.
The product has a compact structure and high positioning accuracy, achieving mechanical miniaturization for customers.
Both modules have a variety of lead screw and stroke options, providing accessories such as encoders and power brakes (refer to optional accessories for sliding screw linear actuators), as well as special customized products.

View Details
Options

Gripper

Based on our own design and development of through motor foundation, the stroke of 6mm and 12mm Gripper can be selected. The structure is compact and simple, which can replace the pneumatic clamping claw, reduce the use noise, and effectively improve the accuracy. High resolution of encoder based closed loop torque control is optional.

View Details
Voice Coil Motor

Voice Coil Motor / Actuator

DINGS' provides standard voice coil motors and actuators but also customized solutions are optional.

View Details

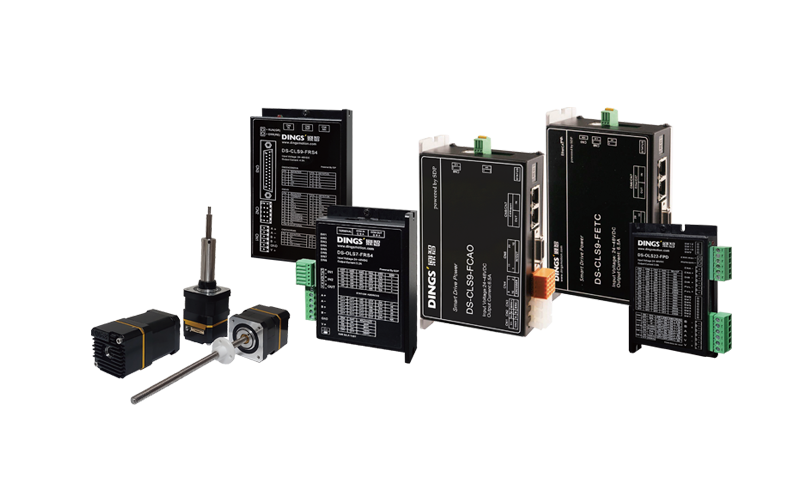

Motion Control Products

Motion Controller

DINGS' offers various drivers & controllers with our linear actuators and motors as one package. From standard mircostepping drivers, closed loop stepper electronics, open/closed loop dynamic drivers and up to BLDC/VCM/Stepper Multi-Purpose of EtherCAT & CANOpen drivers & controllers, we enable customer to easily choose appropriate solutions.

View Details
Options

Customization Options

DINGS' offers various options to help customer for wide range of applications via encoders, brakes, gearboxes and other customization solutions for examples special coating and machining of screw, anti-backlash nut and hand-knob.
