| ① Motor Size |
|
||||||
|---|---|---|---|---|---|---|---|
| ② Product Name | ZWW = Coreless Brushless DC Motor | ||||||
| ③ Motor Shape | C = Circular Type | ||||||
| ④ Motor Length | Unit: mm When the length involves decimal points, use “_” instead. | ||||||
| ⑤ Motor Casing | L = Aluminum T = Stainless steel / Iron | ||||||
| ⑥ Gear Ratio | 00 = Gear Ratio | ||||||
| ⑦ Lead Screw Code | Please refer to lead screw code selection table. | ||||||
| ⑧ Effective Stroke Length | Unit: mm | ||||||
| ⑨ Screw Surface Treatment | S = Standard (No teflon coating) | ||||||
| ⑩ End Machining | C = Customize N = None | ||||||
| ⑪ Nut Style | S = Standard flange nut | ||||||
| ⑫ Encoder | 0 = Resolution | ||||||
| ⑬ Customer Serial Number | |||||||

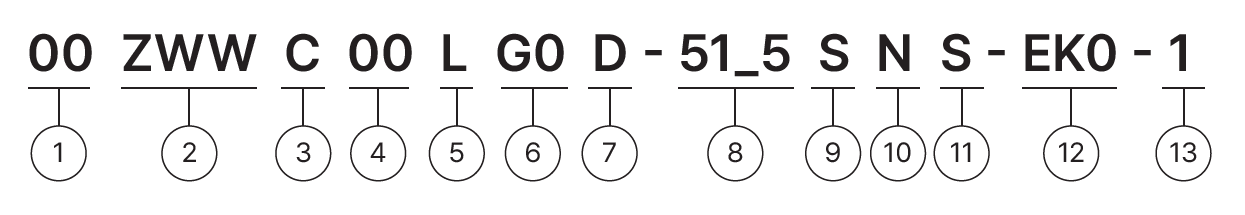

| Example |
|
