Example
| MBG | 06 | 01 | D | X | - | 60 | R | 90 | C3 | Z | - | 001 |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ | ⑪ |
① Series
MBG = Metric threaded single nut (ground)
MBR = Metric threaded single nut (rolled)
② Screw Diameter (mm)
06 = 6mm
③ Lead (mm)
01 = Standard ball lead, 1mm
01K = Non-standard ball lead, 1mm
④ Ball Return Type
D = Deflector Type
S = End Deflector type
T = Return Tube type
C = End-cap type
⑤ Custom Option (Non-standard)
⑥ Threaded Section Length (mm)
Decimal point is indicated by "_"
⑦ Thread Direction
R = Right-hand
L = Left-hand
LR = Right- & Left-hand
⑧ Total Screw Length (mm)
Decimal point is indicated by "_"
⑨ Accuracy Grade
C3 = JIS Standard C3
C5 = JIS Standard C5
C7 = JIS Standard C7
C10 = JIS Standard C10
⑩ Axial Clearance
Z = Preload
T = ≤ 0.005 mm
S = ≤ 0.02 mm
N = ≤ 0.05 mm
⑪ Custom Serial Number
In a mobile environment, you can move left and right to see the contents (tables).

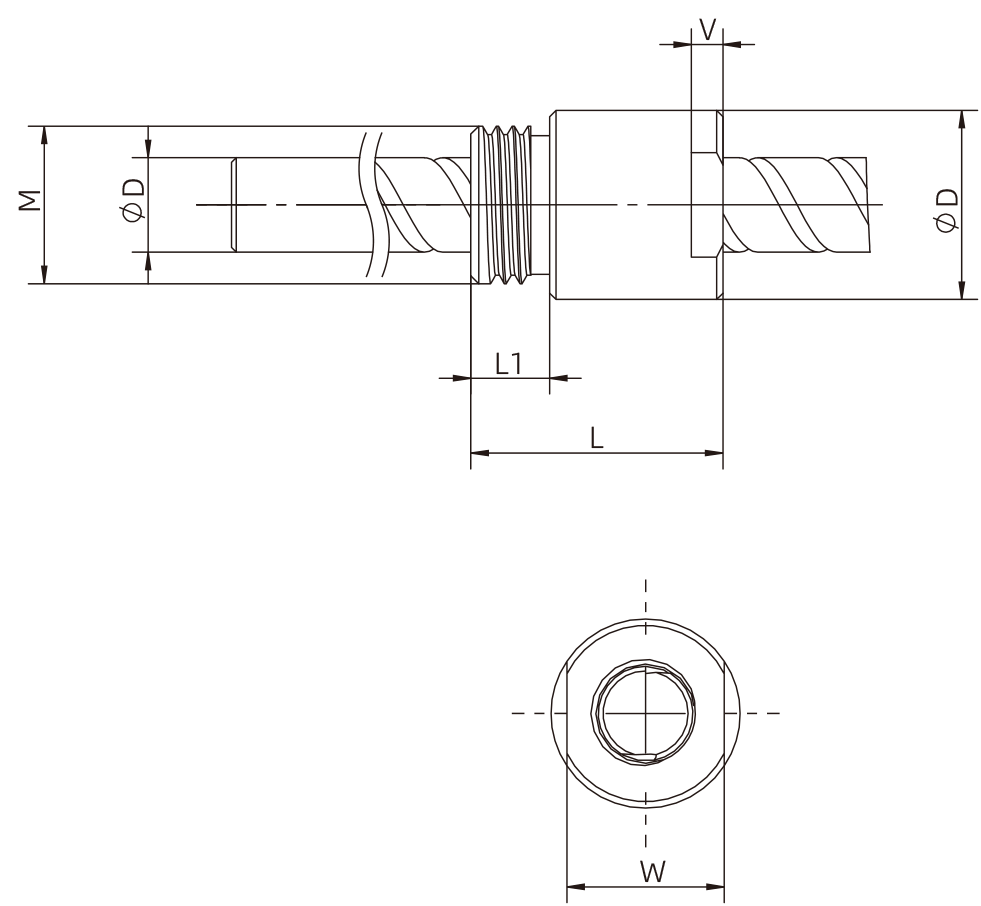

| Screw Diameter D (mm / inch) |
Lead (mm / inch) |
Nut Diameter D (mm / inch) |
Nut Overall Length L (mm / inch) |
Thread Size M (mm) | Thread Length L1 (mm / inch) |
Wrench Flat Width W (mm / inch) |
Wrench Flat Depth V (mm / inch) |
Basic Dynamic Load Rating Ca (N) |
Basic Static Load Rating Coa (N) |
|---|---|---|---|---|---|---|---|---|---|
| 4 (0.157) | 1 (0.039) | 10 (0.394) | 16.5 (0.65) | M8X0.75 | 5 (0.197) | 9 (0.354) | 1.5 (0.059) | 560 | 790 |
| 6 (0.236) | 1 (0.039) | 12 (0.472) | 16 (0.63) | M10×0.75 | 5 (0.197) | 10 (0.394) | 2 (0.079) | 680 | 1200 |
| 6 (0.236) | 2 (0.079) | 12 (0.472) | 16 (0.63) | M10X1 | 5 (0.197) | 10 (0.394) | 2 (0.079) | 880 | 1500 |
| 8 (0.315) | 2 (0.079) | 16 (0.63) | 27 (1.063) | M14X0.75 | 5 (0.197) | 14 (0.551) | 4 (0.157) | 1300 | 2300 |
| 10 (0.394) | 2 (0.079) | 19.5 (0.768) | 22 (0.866) | M17X1 | 8.2 (0.323) | - | - | 1500 | 2900 |
