Example
| FBG | 06 | 01 | D | X | - | 60 | R | 90 | C3 | Z | - | 001 |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ | ⑪ |
① Series
FBG = Flanged single nut (ground)
FBR = Flanged single nut (rolled)
② Screw Diameter (mm)
06 = 6mm
③ Lead (mm)
01 = Standard ball lead, 1mm
01K = Non-standard ball lead, 1mm
④ Ball Return Type
D = Deflector Type
S = End Deflector type
T = Return Tube type
C = End-cap type
⑤ Custom Option (Non-standard)
⑥ Threaded Section Length (mm)
Decimal point is indicated by "_"
⑦ Thread Direction
R = Right-hand
L = Left-hand
LR = Right- & Left-hand
⑧ Total Screw Length (mm)
Decimal point is indicated by "_"
⑨ Accuracy Grade
C3 = JIS Standard C3
C5 = JIS Standard C5
C7 = JIS Standard C7
C10 = JIS Standard C10
⑩ Axial Clearance
Z = Preload
T = ≤ 0.005 mm
S = ≤ 0.02 mm
N = ≤ 0.05 mm
⑪ Custom Serial Number
In a mobile environment, you can move left and right to see the contents (tables).

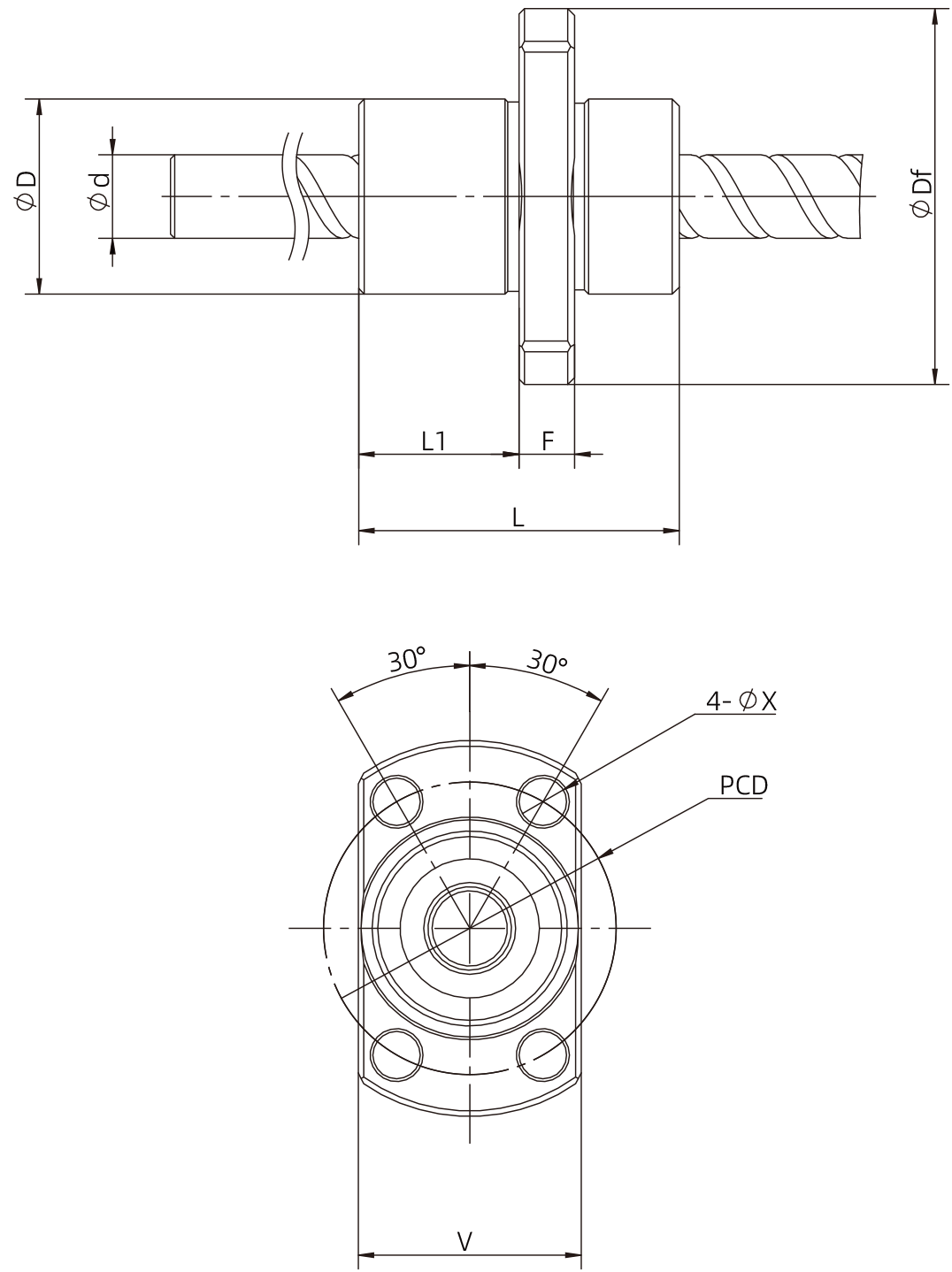

| Nut Type |
Screw Diameter D (mm / inch) |
Lead (mm / inch) |
Nut Diameter D (mm / inch) |
Nut Overall Length L (mm / inch) |
Mounting Length L1 (mm / inch) |
Flange Diameter Df (mm / inch) |
Flange Thickness F (mm / inch) |
Mounting Hole Diameter X (mm / inch) |
Bolt Circle Diameter (PCD) (mm / inch) |
Nut Flat Width V (mm / inch) |
Basic Dynamic Load Rating Ca (N) |
Basic Static Load Rating Coa (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 6 (0.24) | 6 (0.24) | 14 (0.551) | 17.2 (0.677) | 8 (0.315) | 27 (1.063) | 4 (0.157) | 3.4 (0.134) | 21 (0.827) | 16 (0.63) | 870 | 1450 |
| 1 | 6 (0.24) | 10 (0.39) | 14 (0.551) | 23 (0.906) | 11.5 (0.453) | 27 (1.063) | 4 (0.157) | 3.4 (0.134) | 21 (0.827) | 16 (0.63) | 950 | 1600 |
| 1 | 8 (0.31) | 8 (0.31) | 18 (0.709) | 21.5 (0.846) | 11.5 (0.453) | 31 (1.22) | 4 (0.157) | 3.4 (0.134) | 25 (0.984) | 20 (0.787) | 2200 | 3800 |
| 1 | 8 (0.31) | 10 (0.39) | 18 (0.709) | 24 (0.945) | 13 (0.512) | 31 (1.22) | 4 (0.157) | 3.4 (0.134) | 25 (0.984) | 20 (0.787) | 2200 | 3900 |
| 1 | 8 (0.31) | 12 (0.47) | 18 (0.709) | 28 (1.102) | 18 (0.709) | 31 (1.22) | 4 (0.157) | 3.4 (0.134) | 25 (0.984) | 20 (0.787) | 2200 | 4000 |
| 1 | 12 (0.472) | 5 (0.197) | 24 (0.945) | 30 (1.181) | 15 (0.591) | 40 (1.575) | 10 (0.39) | 4.5 (0.177) | 32 (1.260) | 30 (1.181) | 4100 | 7400 |
