63ZYTC125-1 Brush DC Motor has 24V Rated voltage of DC Motor and it can run at Max. 3,200RPM.
It can generate 0.27N.m of rated torque and customized with gearbox and also designed as various linear actuators.
In a mobile environment, you can move left and right to see the contents (tables).
| Motor part number | 63ZYTC125-1 | ||
|---|---|---|---|
| Rated voltage | V | 24 | |
| Rated torque | N·m | 0.27 | |
| Rated speed | RPM | 3200 | |
| Rated current | A | 6.0 | |
| No load speed | RPM | 3650 | |
| No load current | A | 1.0 | |
| Rated power | W | 90 | |
| Stall torque | N·m | 1.6 | |
| Stall current | A | 29 | |
| Torque constant | mNm/A | 62 | |
| Back emf constant | V/Krpm | 6.01 | |
| Terminal resistance | Ω | 0.82 | |
| Terminal inductance | mH | 1.6 | |
| Rotor inertia | kg·cm² | 0.8 | |
| Starting torque | mN·m | 42 | |
| Noise (ambient noise 20dB, test distance 1m) | dB | <50 | |
| Life span | H | >3000 | |
| Insulation resistance | - | 100M Ω/250V | |
| Duty cycle | - | S1 | |
| Motor weight | kg | 1.6 | |

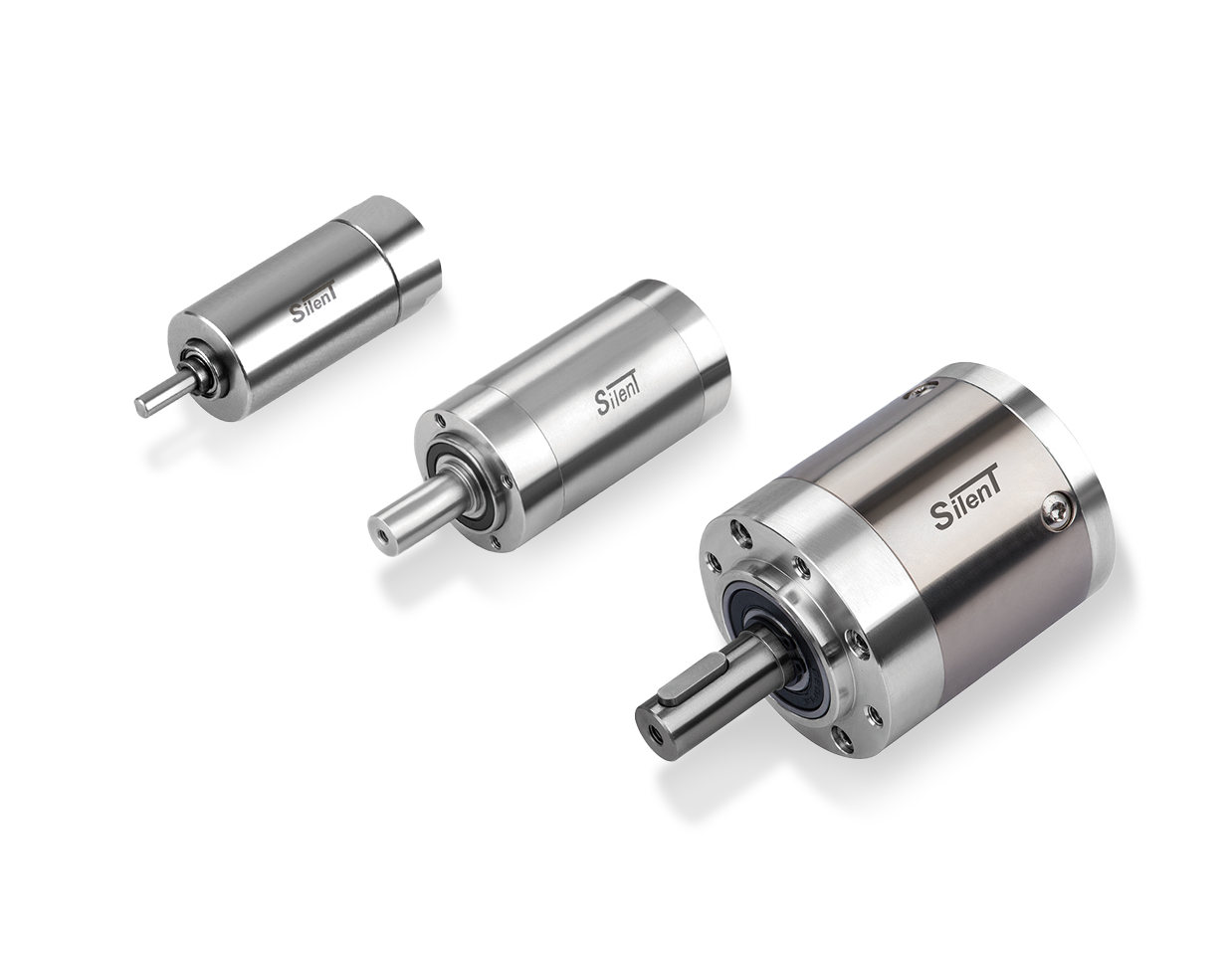

Silent
A high-performance gear reduction solution that delivers both stable torque transmission and low-noise operation, built on precision gear machining technology. Compatible with a wide range of DINGS' motors and applicable across diverse industries including robotics, automation equipment, and precision machinery.
Explore available specifications and gear ratio options on the DKPS website below.
View details on DKPS →
