Part Number Construction

Please choose right part number as following guide line as below.

In a mobile environment, you can move left and right to see the contents (tables).

① Product Name

DLM Series Module

② Stroke（mm)

100 = 100mm

③ Motor Size

In a mobile environment, you can move left and right to see the contents (tables).

Motor Size (mm)	14	20	28	35	42	57
Motor Size (NEMA)	06	08	11	14	17	23

④ Motor Type

E = External Type
N = Non-Captive Type

⑤ Motor Step Angle

2 = 2-phase, 1.8° step angle
4 = 2-phase, 0.9° step angle

⑥ Motor Length

1 = Single Stack
2 = Double Stack

⑦ Rated Current / Phase

XX = X.X [A]/Phase

⑧ Lead Screw Code

Please refer to lead screw code selection table

⑨ Number of Lead Wires

4 = 4-wire leads
6 = 6-wire leads

⑩ Option

EKX = Encoder [X=Encoder Resolution]
P = Manual Knob
B = Brake
X = Rear Shaft
R = Encoder Ready
C = Customization
N = No rear-end machining

⑪ Customer Sequence Number

Example

In a mobile environment, you can move left and right to see the contents (tables).

Part Number	DLM100-17E2110S4-EK7D-001
Description	DLM Linear Module 100mm Stroke NEMA 17 External Linear Actuator 2-phase, 1.8° step angle Single Stack 1.0A / Phase S Lead (0.25" or 6.35mm) 4-wire leads EK7 Encoder with differential output 1,000 lines Serial Number 001

Part Number Construction

Please choose right part number as following guide line as below.

In a mobile environment, you can move left and right to see the contents (tables).

① Product Name

L·R DLM Series Module

② Stroke（mm)

100 = 100mm

③ Motor Size

In a mobile environment, you can move left and right to see the contents (tables).

Motor Size (mm)	20	28	35	42	57
Motor Size (NEMA)	08	11	14	17	23

④ Motor Type

E = External Type

⑤ Motor Step Angle

2 = 2-phase, 1.8° step angle
4 = 2-phase, 0.9° step angle

⑥ Motor Length

1 = Single Stack
2 = Double Stack

⑦ Rated Current / Phase

XX = X.X [A]/Phase

⑧ Lead Screw Code

Please refer to lead screw code selection table

⑨ Number of Lead Wires

4 = 4-wire leads
6 = 6-wire leads

⑩ LR DLM

"L" indicates the LR-DLM series

⑪ Customer Sequence Number

Example

In a mobile environment, you can move left and right to see the contents (tables).

Part Number	DLM100-8E2205G4-L-001
Description	L·R DLM Linear Module 100mm Stroke NEMA 8 External Linear Actuator 2-phase, 1.8° step angle Double Stack 0.5A / Phase G Lead (0.0787" or 2.0mm) 4-wire leads Serial Number 001

Part Number Construction

Please choose right part number as following guide line as below.

In a mobile environment, you can move left and right to see the contents (tables).

① Product Name

DSM Series Module

② Stroke（mm)

100 = 100mm

③ Motor Size

In a mobile environment, you can move left and right to see the contents (tables).

Motor Size (mm)	14	20	28	35	42
Motor Size (NEMA)	06	08	11	14	17

④ Motor Type

E = External Type
N = Non-Captive Type

⑤ Motor Step Angle

2 = 2-phase, 1.8° step angle
4 = 2-phase, 0.9° step angle

⑥ Motor Length

1 = Single Stack
2 = Double Stack

⑦ Rated Current / Phase

XX = X.X [A]/Phase

⑧ Lead Screw Code

Please refer to lead screw code selection table

⑨ Number of Lead Wires

4 = 4-wire leads
6 = 6-wire leads

⑩ Option

EKX = Encoder [X=Encoder Resolution]
P = Manual Knob
B = Brake
X = Rear Shaft
R = Encoder Ready
C = Customization
N = No rear-end machining

⑪ Customer Sequence Number

Example

In a mobile environment, you can move left and right to see the contents (tables).

Part Number	DSM100-17E2110S4-EK7D-001
Description	DSM Linear Module 100mm Stroke NEMA 17 External Linear Actuator 2-phase, 1.8° step angle Single Stack 1.0A / Phase S Lead (0.25" or 6.35mm) 4-wire leads EK7 Encoder with differential output 1,000 lines Serial Number 001

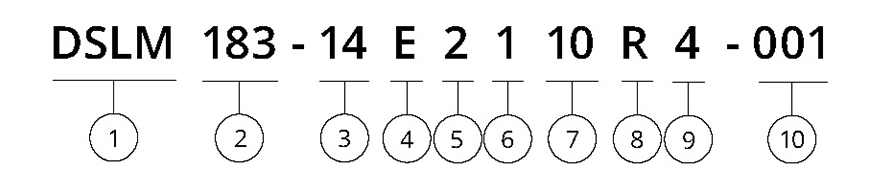

Part Number Construction

Please choose right part number as following guide line as below.

In a mobile environment, you can move left and right to see the contents (tables).

① Product Name

DSLM Series Module

② Stroke（mm)

183 = 183mm

③ Motor Size

In a mobile environment, you can move left and right to see the contents (tables).

Motor Size (mm)	35	42	57
Motor Size (NEMA)	14	17	23

④ Motor Type

E = External Type

⑤ Motor Step Angle

2 = 2-phase, 1.8° step angle

⑥ Motor Length

1 = Single Stack
2 = Double Stack

⑦ Rated Current / Phase

XX = X.X [A]/Phase

⑧ Lead Screw Code

Please refer to lead screw code selection table

⑨ Number of Lead Wires

4 = 4-wire leads

⑩ Customer Sequence Number

Example

In a mobile environment, you can move left and right to see the contents (tables).

Part Number	DSLM183-14E2110R4-001
Description	DSLM Linear Module 183mm Stroke NEMA 14 External Linear Actuator 2-phase, 1.8° step angle Single Stack 1.0A / Phase R Lead (0.2" or 5.08mm) 4-wire leads Serial Number 001

Part Number Construction

Please choose right part number as following guide line as below.

In a mobile environment, you can move left and right to see the contents (tables).

① Product Name

DWM Series Module

② Stroke（mm)

100 = 100mm

③ Motor Size

In a mobile environment, you can move left and right to see the contents (tables).

Motor Size (mm)	20	28	35	42	57
Motor Size (NEMA)	8	11	14	17	23

④ Motor Type

E = External Type

⑤ Motor Step Angle

2 = 2-phase, 1.8° step angle
4 = 2-phase, 0.9° step angle

⑥ Motor Length

1 = Single Stack
2 = Double Stack

⑦ Rated Current / Phase

XX = X.X [A] / Phase

⑧ Lead Screw Code

Please refer to lead screw code selection table

⑨ Number of Lead Wires

4 = 4-wire leads
6 = 6-wire leads

⑩ Option

EKX = Encoder
P = Manual Knob
B = Brake
X = Rear Shaft
R = Encoder Ready
C = Customization
N = No rear-end machining

⑪ Customer Sequence Number

Example

In a mobile environment, you can move left and right to see the contents (tables).

Part Number	DWM100-17E2110S4-EK7D-001
Description	DWM Linear Module 100mm Stroke NEMA 17 External Linear Actuator 2-phase, 1.8° step angle Single Stack 1.0A / Phase S Lead (0.25" or 6.35mm) 4-wire leads EK7 Encoder with differential output 1,000 lines Serial Number 001
