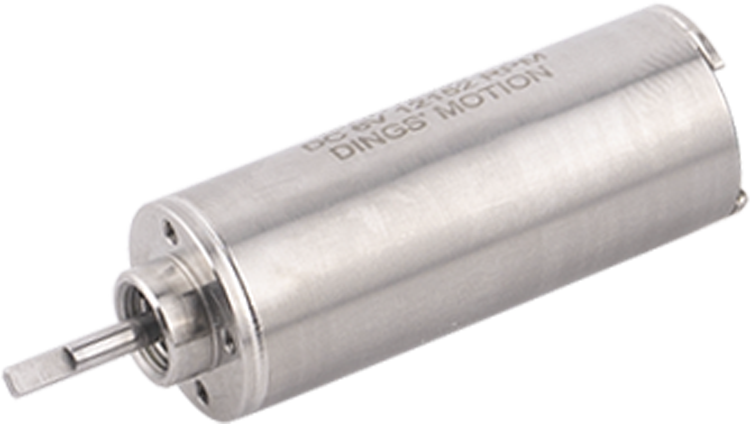

DINGS' Slotless Brushless DC Motor, 14ZWWC36 can avoid the pulsation of air gap magnetic induction caused by uneven magnetic resistance in the teeth.
It can eliminate the pulse loss in the armature core and the surface loss on the main pole surface.
14ZWWC36 Slotless Brushless DC Motor has high durability, low electrical noise and high efficiency. Maximum efficiency of motor reaches 68% and this motor is suitable for the servo system which needs quick movement and high power.
14ZWWC36 Rated Power is 5W and Peak Torque is 22.07mN.m.
In a mobile environment, you can move left and right to see the contents (tables).
| Motor part number | 14ZWWC36 | ||
|---|---|---|---|
| Pole pair | - | 1 | |
| Phase resistance | Ω | 0.87 | |
| Winding connection method | - | Triangular shape | |
| Insulation class | - | B | |
| Duty type | - | S1 | |
|
Insulation strength (Withstand voltage) |
- | 500VAC/1KHz/1mA/1s | |
| Insulation resistance | - | 100MΩ/500VDC | |
| Weight | g | 34.2 | |
| Rated voltage | V | 6 | |
| Rated power | W | 5 | |
| Rated torque | mN·m | 4 | |
| Rated speed | RPM | 12000 | |
| Rated current | A | 1.25 | |
| No load speed | RPM | 15000 | |
| No load current | A | 0.16 | |
| Motor efficiency | % | 68 | |
|
Noise (Ambient noise 20db, test distance 1m) |
dB | ＜50 | |
| Torque constant | mN·m/A | 3.2 | |
|
Back-EMF constant - peak value |
V/Krpm | 0.47 | |
|
Back-EMF constant - effective value |
V/Krpm | 0.34 | |
| Peak torque | mN·m | 22.07 | |
| Peak current | A | 7 | |
| Inertia moment | g·cm² | 0.3 | |
| Mechanical time constant | ms | 2.55 | |
| End bell | - | Stainless steel | |
| Bearing | - | Deep Groove Ball bearing | |
| Magnet | - | Sinter NdFeB | |
| Rotation shaft | - | Carbon steel | |
In a mobile environment, you can move left and right to see the contents (tables).
| Stage | - | Stage 1 | Stage 2 | Stage 3 | Stage 4 |
|---|---|---|---|---|---|
| Gear ratio | X : 1 | 4.3 | 18.4 | 79 | 337 |
| Max. backlash | ° | 1.1 | 1.3 | 1.45 | 1.7 |
| Max. continuous output power | W | 4.0 | 2.0 | 1.0 | 0.4 |
| Max. peak output power | W | 5.0 | 2.5 | 1.25 | 0.5 |
| Max. continuous input speed | rpm | 14000 | 16000 | 16000 | 16000 |
| Max. peak input speed | rpm | 18000 | 20000 | 20000 | 20000 |
| Max. continuous torque | N.m | 0.16 | 0.2 | 0.25 | 0.3 |
| Max. peak torque | N.m | 0.2 | 0.25 | 0.31 | 0.38 |
| Max. efficiency | % | 90 | 80 | 75 | 65 |
| Weight | g | 11 | 15 | 19 | 23 |
| Gearbox length L | mm | 11.8 | 16.1 | 20.4 | 24.7 |
