Part Number Construction

Please choose right part number as following guide line as below.

In a mobile environment, you can move left and right to see the contents (tables).

① Product Name

Electric Gripper

② Stroke（mm)

12 = 12mm

③ Motor Size

In a mobile environment, you can move left and right to see the contents (tables).

Motor Size (mm)	20	28	35	42
Motor Size (NEMA)	08	11	14	17

④ Motor Type

N= Non-Captive Linear actuator

⑤ Motor Step Angle

2 = 2 Phase with 1.8°

⑥ Motor Length

1 = Single Stack
2 = Double Stack

⑦ Rated Current / Phase

XX = X.X [A]/Phase

⑧ Lead Screw Code

Please refer to lead screw code selection table

⑨ Number of Lead Wires

4 = 4 Flying Leads
6 = 6 Flying Leads

⑩ Option

EKX = Encoder (X=Encoder Resolution)
ER = Encoder Ready

⑪ Customer Sequence Number

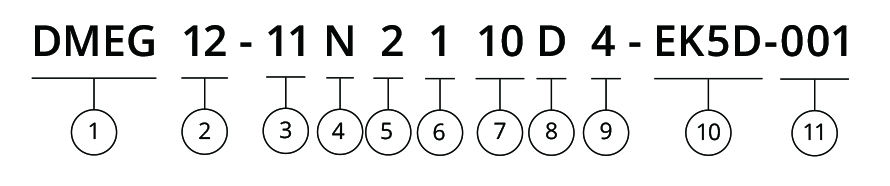

Example

In a mobile environment, you can move left and right to see the contents (tables).

Part Number	DMEG12-11N2110D4-EK5D-001
