![90mm Voice Coil Linear Actuator [Position Sensor Integrated] images](/img/products/07/VCA-90.png)
In a mobile environment, you can move left and right to see the contents (tables).
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous current @100℃ (A) |
Peak Thrust Force (N) |
Force constant (N/A) @ mid position |
Resistance (Ω) |
Coil Gap (mm) |
Coil Max. Temperature (℃) |
Peak current (A) |
Magnet weight (g) |
Insulation Class | Resolution (μm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 | 15 | 22.5 | 90 | 4 | 340 | 22.5 | 4.00 ±10% | 0.7 | 155 | 15 | 1055 | B | 1 |

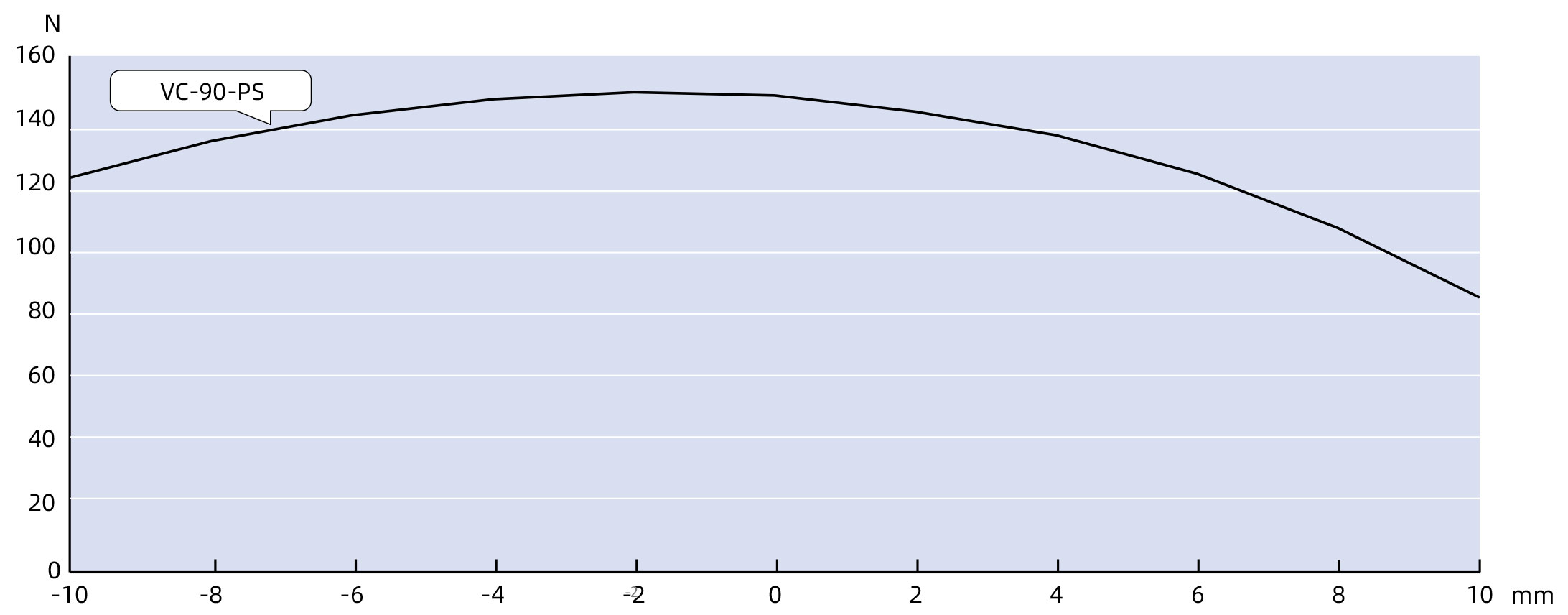

* This curve is the thrust curve under the rated current and the thrust is affected by the current change
