In a mobile environment, you can move left and right to see the contents (tables).
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous current @100℃ (A) |
Peak Thrust Force (N) |
Force constant (N/A) @ mid position |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max. Temperature (℃) |
Coil Assembly weight (g) |
Total Assembly weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 13 | 7.35 | 4.63 | 0.63 | 29.4 | 7.35 | 11.34 | 2.63 | 0.6 | 100 | 25 | 96 |
| 30 | 15 | 7.35 | 4.63 | 0.63 | 29.4 | 7.35 | 11.35 | 2.63 | 0.6 | 100 | 25 | 96 |
In a mobile environment, you can move left and right to see the contents (tables).
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous current @100℃ (A) |
Peak Thrust Force (N) |
Force constant (N/A) @ mid position |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max. Temperature (℃) |
Coil Assembly weight (g) |
Total Assembly weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 5 | 11.87 | 9.5 | 0.8 | 65 | 11.87 | 10.15 | 2.24 | 0.5 | 100 | 41 | 158 |
| 30 | 12 | 9.12 | 13 | 1.5 | 80 | 9.12 | 5.21 | 1.9 | 0.5 | 100 | 64 | 190 |

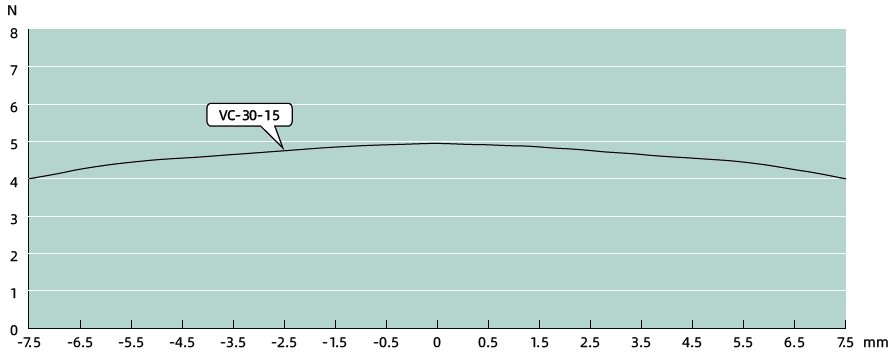

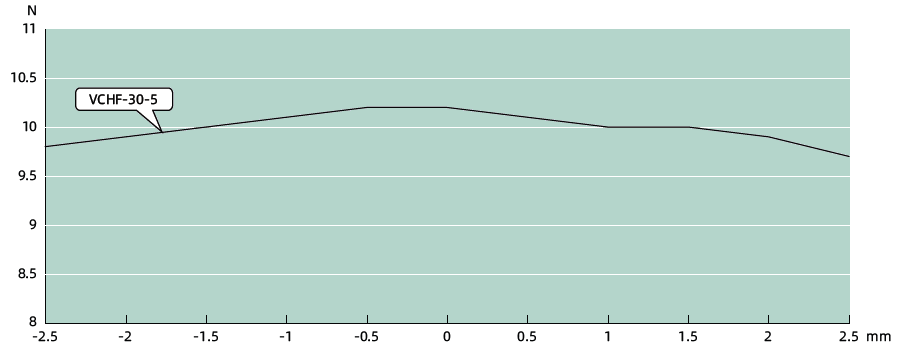

* This curve is the thrust curve under the rated current and the thrust is affected by the current change
