57mm Brushless DC Motor

57mm Brushless DC Motor has Max. 0.33N·m rated torque and it can generate 103.7W capacity of rated power.

57mm motors have Star winding connection and 5 pole pairs motors with Hall sensors feed back method as standard.

In addition, gearbox and incremental encoder is available.

In a mobile environment, you can move left and right to see the contents (tables).

Motor part number	-	57ZWS50X-1	57ZWS63X-1	57ZWS75X-1
Body length (LT)	mm	50±1	63±1	75±1
Pole pair	-	5	5	5
Phase resistance	Ω	0.958	0.473	0.301
Phase inductance	mH	0.742	0.357	0.205
winding connection method	-	Star shape	Star shape	Star shape
Insulation class	-	B	B	B
Duty type	-	S1	S1	S1
Feedback method	-	Hall sensors	Hall sensors	Hall sensors
Commutation angle	-	120°	120°	120°
Insulation strength(Withstand voltage)	-	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s
Insulation resistance	-	100 MOhm 20C	100 MOhm 20C	100 MOhm 20C
Weight	Kg	0.42	0.65	0.87
Rated voltage	V	24	24	24
Rated power	W	37.4	69.1	103.7
Rated torque	N·m	0.119	0.22	0.33
Rated speed	RPM	3000	3000	3000
Rated current	A	2.2	4.1	6
No load speed	RPM	4000	4000	4000
No load current	A	0.25	0.5	0.75
Motor efficiency	%	78	80	82
Noise (Ambient noise 20db,test distance 1m)	dB	＜50	＜50	＜50
Enclosure - Ambient thermal resistance	K/W	0.53	0.27	0.18
Ambient temperature	℃	29	29	29
Maximum winding temperature	℃	77.4	77.4	77.4
Torque constant	N·m/A	0.054	0.054	0.055
Back-EMF constant / Effective value	V/Krpm	5.66	5.66	5.66
Peak torque	N·m	0.357	0.66	0.99
Peak current	A	6.6	12.3	18
Inertia moment	Kg·cm²	0.19	0.38	0.56

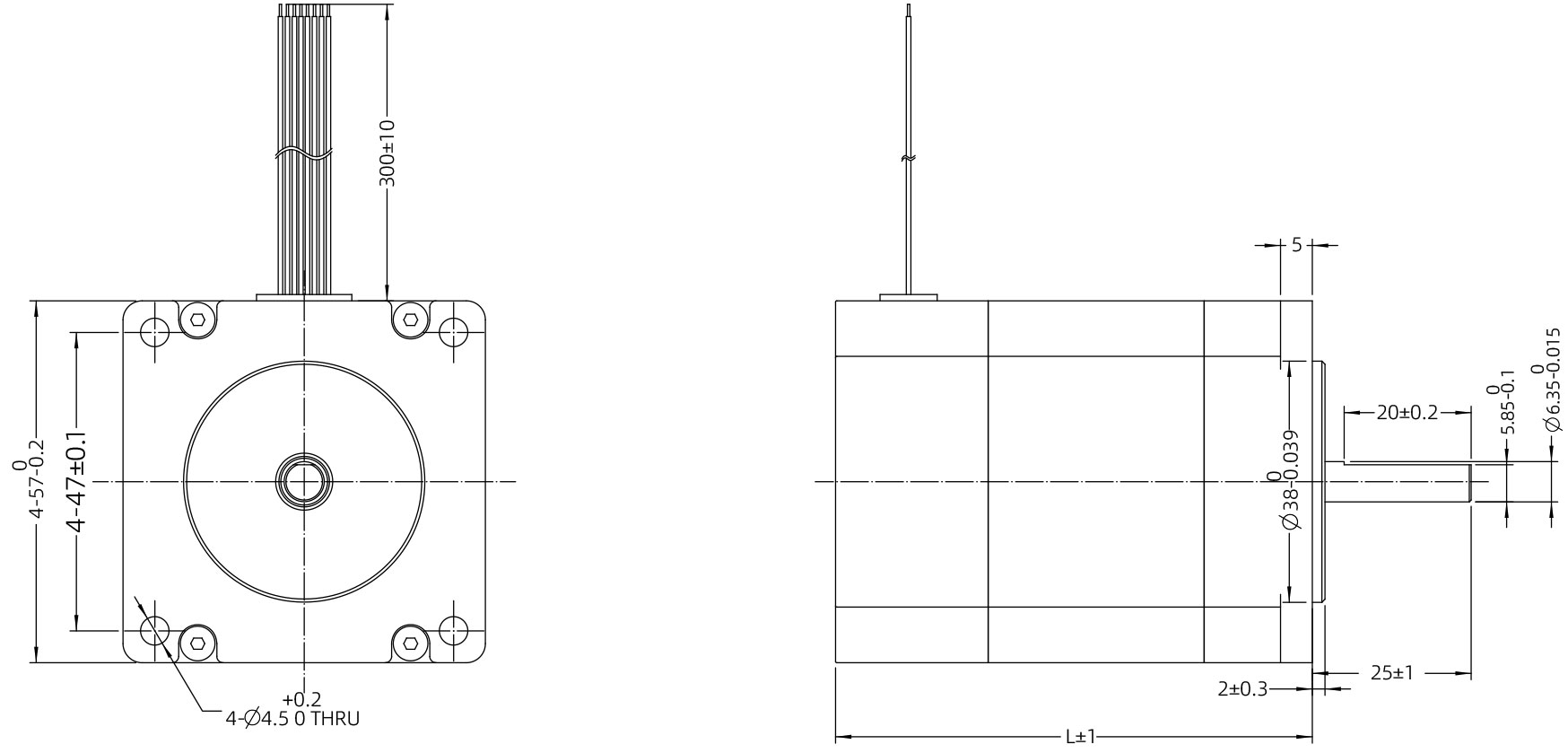

*LT : Refer to the Motor Characteristics table

In a mobile environment, you can move left and right to see the contents (tables).

Lead-out type	Lead-out color	Function
UL3265 AWG26	Yellow	Hall U（Hu）
	Green	Hall V（Hv）
	Blue	Hall W（Hw）
	Red	Hall power supply positive（Vcc）
	Black	Hall power supply negative（GND）
UL3265 AWG18	Yellow	U phase
	Green	V phase
	Blue	W phase
