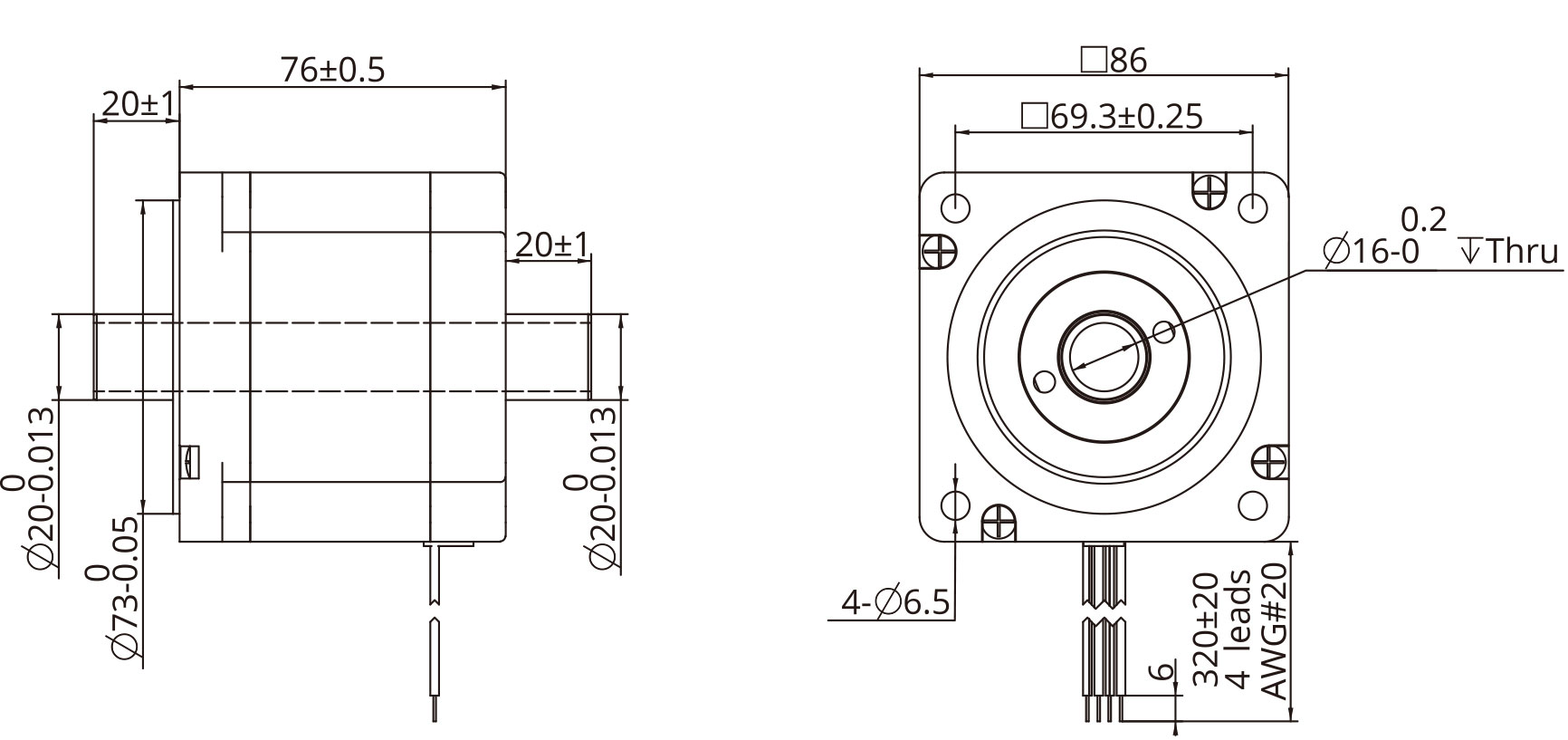

The size 34 [86mm] Hollow Shaft Stepper Motor has Max. 4.5N·m of holding torque.
For special windings or customization of shaft, also hollow type of encoder assembly, Please contact DINGS' for further information.
.png)
In a mobile environment, you can move left and right to see the contents (tables).
| Model No. | Rated Voltage (V) |
Current (A [RMS]) |
Resistance (Ω) |
Inductance (mH) |
Holding Torque (N·m) |
Detent Torque (N·m) |
Motor length (mm) |
|---|---|---|---|---|---|---|---|
| 34HS2076 | 5.7 | 3.0 | 1.9 | 15 | 4.5 | 0.095 | 76 |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 64 | 100 | 200 | 500 | 1000 | 1800 | 2000 | 2500 | 3600 | 4000 | 5000 | 7200 | 8000 | 10000 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M |
