The size 24 [60mm] Hybrid Rotary Stepper Motor has Max. 3.0N·m of holding torque.
Encoders and 60mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact DINGS' for further information.
In a mobile environment, you can move left and right to see the contents (tables).
| General | |||||||
|---|---|---|---|---|---|---|---|
| Accuracy | Step angle | 1.8°±5% | |||||
| Resistance | ±10% / 20 C | ||||||
| Inductance | ±20% / 1KHz | ||||||
| Insulation class | B | ||||||
| Duty type | S1 | ||||||
| Dielectrical strength | 500 VAC / 1 KHz / 1 mA / 1 s | ||||||
| Insulation resistance | 100 MΩ / 500 VDC | ||||||
| Permissible radial load (5MM distance from mounting surface) |
Permissible radial load (10MM distance from mounting surface) |
Permissible radial load (15MM distance from mounting surface) |
Permissible radial load (20MM distance from mounting surface) |
||||
| 210N | 170N | 140N | 120N | ||||
| Parameter | |||||||
| Type | Current (A [RMS]) |
Resistance (Ω) |
Inductance (mH) |
Holding Torque (N·m) |
Rotor Inertia (g·cm2) |
Length (mm) |
Mass (g) |
| 24H2047 | 2.0 | 1.5 | 3.4 | 1 | 240 | 47 | 600 |
| 24H2056 | 3.0 | 0.8 | 2.3 | 1.5 | 340 | 56 | 800 |
| 24H2068 | 4.0 | 0.6 | 1.9 | 2.1 | 490 | 68 | 1000 |
| 24H2085 | 5.0 | 0.4 | 1.8 | 3 | 690 | 85 | 1300 |
| Material | |||||||
| End bell | Aluminum alloy | ||||||
| Bearing | Deep groove ball bearing | ||||||
| Magnet | Sintered NdFeB | ||||||
| Shaft | Stainless steel | ||||||
| Wiring | UL 3265, 20/22 AWG | ||||||

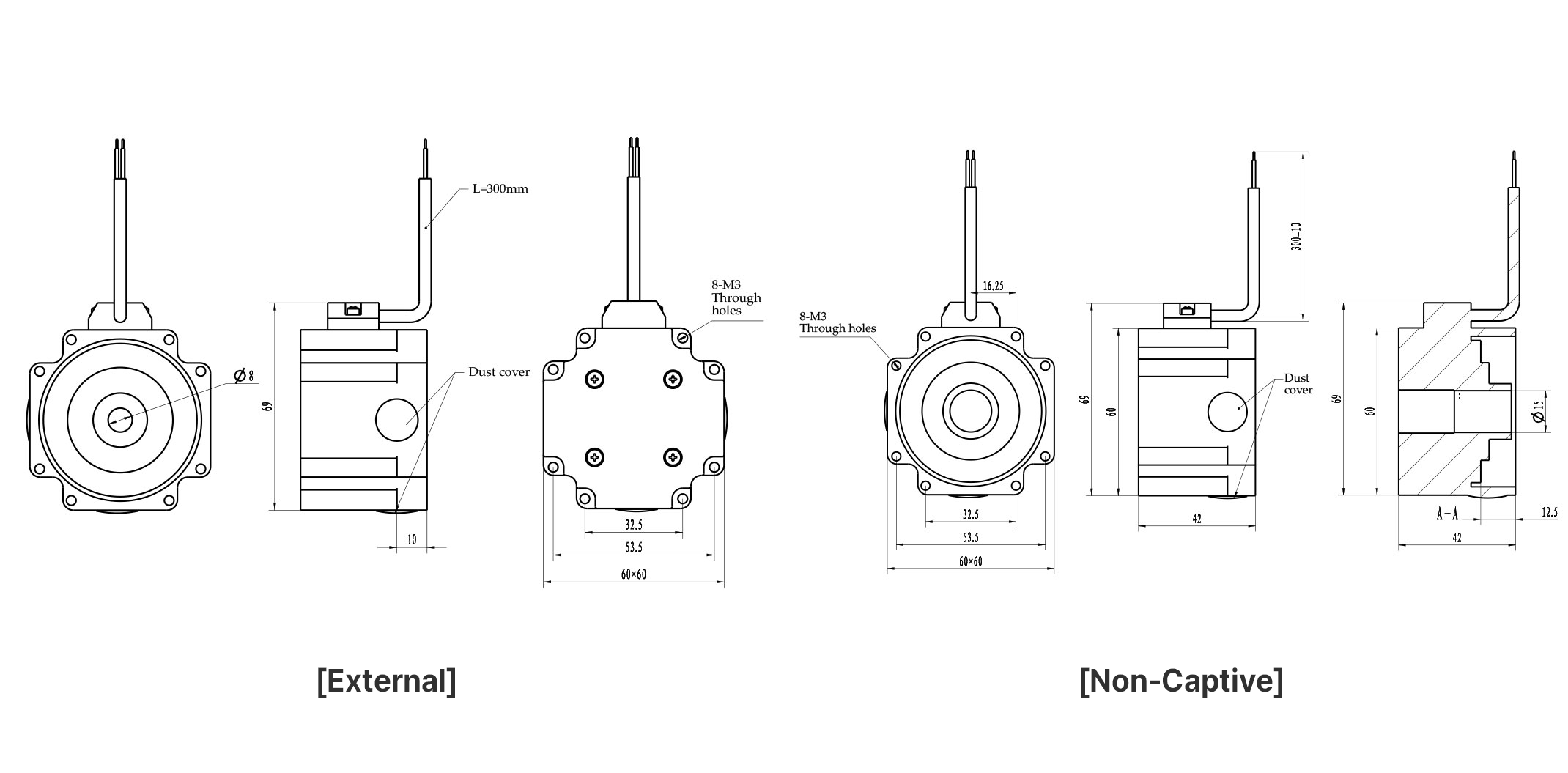

![Size 24 [60mm] images](/img/products/04/24H2085.png)
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
In a mobile environment, you can move left and right to see the contents (tables).
| House material | Metal | |||||
| No load backlash | First stage 15 arcmin, second stage 25 arcmin | |||||
| Bearing | Ball bearing | |||||
| Ratio | Rated torque (N.m) |
Limit torque (N·m) |
Stages | Efficiency (%) |
Length (mm) |
Mass (g) |
|---|---|---|---|---|---|---|
| 5 | 6 | 12 | 1 | 95 | 53 | 900 |
| 10 | ||||||
| 15 | 25 | 40 | 2 | 90 | 70 | 1200 |
| 20 | ||||||
| 25 | ||||||
![Size 17 [42mm]](/img/products/09/brake/24/1. Image_Brake 60mm.png)
In a mobile environment, you can move left and right to see the contents (tables).
| Rated voltage | DC 24V ± 5% | |
|---|---|---|
| Resistance | 141Ω ± 10% | |
| Power | 5W | |
| Hold torque | >2N.M | |
| Insulation | B | |
| Insulation resistance | >100MΩ (DC500V) | |
| Dielectric strength | AC 1000V for 1 sec | |
| Retraction time | 50ms | |
| Release time | 50ms | |
| Gyration gap | 1° | |
| Emergency brake time | 200 | |
| Lifetime | 2,000,000 times | |
| Noise level | <60db | |
In a mobile environment, you can move left and right to see the contents (tables).
![Size 24 [60mm]](/img/products/09/brake/24/2. dimension-brake 60mm.png)
