The size 17 External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
![Size 17 [42mm] Stepper Ball Screw Linear Actuators](/img/products/02/Ball_size17(42mm).png)
In a mobile environment, you can move left and right to see the contents (tables).
| Model No. | Rated Voltage[V] | Current[A [RMS]] | Resistance[Ω] | Inductance[mH] | Lead Wire No. | Motor Length "L"[mm] |
|---|---|---|---|---|---|---|
| 17E2110 | 3.8 | 1 | 3.8 | 5 | 4 | 34.1 |
| 17E2115 | 2.78 | 1.5 | 1.85 | 2.2 | 4 | 34.1 |
| 17E2212 | 4.56 | 1.2 | 3.8 | 8 | 4 | 48.1 |
| 17E2225 | 2.5 | 2.5 | 1.0 | 1.8 | 4 | 48.1 |
In a mobile environment, you can move left and right to see the contents (tables).
| Ball screw type | 0801 | 0802 | 0802.5 | 0805 | 0808 | 0810 | 0812 |
|---|---|---|---|---|---|---|---|
| Ball Size | Ф0.8 | Ф1.5875 | Ф1.5875 | Ф1.5875 | Ф1.5875 | Ф1.5875 | Ф1.5875 |
| Number of thread | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Thread direction | Right | ||||||
| Shaft root dia. | Ф7.3 | Ф6.6 | Ф6.3 | Ф6.6 | Ф6.7 | Ф6.7 | Ф6.7 |
| Number of circuit | 3.7×1 | 3.7×1 | 2.7×1 | 2.7×1 | 1.6×2 | 1.6×2 | 1.6×2 |
| Shaft, nut material | SCM415H | ||||||
| Surface hardness | HRC58~62 | ||||||
| Anti-rust treatment | Anti-rust oil | ||||||
| Grade | C7 | ||||||
| Nut size | A | B | C | D | H | W | X | E | Position accuracy | Total run out | Axial play | Dynamic load[N] | Static load[N] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BS0801 | 29 | 4 | 17 | 16 | 18 | 23 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 780 | 1650 | |
| BS0802 | 37 | 5 | 24 | 20 | 22 | 29 | 4.5 | ±0.05 | 0.12 | ≤0.03 | 2400 | 4100 | |
| BS0802.5 | 29 | 4 | 16 | 16 | 18 | 23 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 1850 | 3000 | |
| BS0805 | 31 | 4 | 28 | 18 | 20 | 25 | 3.4 | ±0.05 | 0.12 | ≤0.03 | 1850 | 3000 | |
| BS0808 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
| BS0810 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 7 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
| BS0812 | 31 | 4 | 24 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | ≤0.03 | 2200 | 3800 |
* The unit of Position accuracy, Total run out and Axial play is [mm].
In a mobile environment, you can move left and right to see the contents (tables).

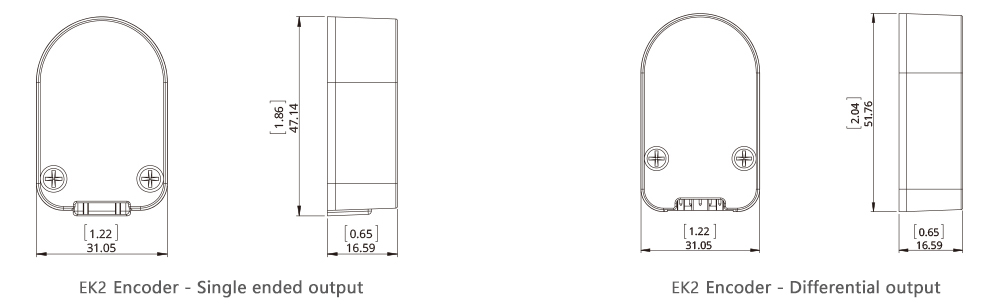

| Resolution(CPR) | 100 | 108 | 120 | 125 | 128 | 200 | 250 | 256 | 300 | 360 | 400 | 500 | 1000 | 512 | 720 | 800 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
![Size 17 [42mm]](/img/products/09/brake/17/1. Image_Brake 42mm.png)
In a mobile environment, you can move left and right to see the contents (tables).
| Rated voltage | DC 24V ± 5% | |
|---|---|---|
| Resistance | 145Ω ± 10% | |
| Power | 5W | |
| Hold torque | >0.8N.M | |
| Insulation | B | |
| Insulation resistance | >100MΩ (DC500V) | |
| Dielectric strength | AC 1000V for 1 sec | |
| Retraction time | 50ms | |
| Release time | 50ms | |
| Gyration gap | 1° | |
| Emergency brake time | 200 | |
| Lifetime | 2,000,000 times | |
| Noise level | <60db | |
![Size 17 [42mm]](/img/products/09/brake/17/2. dimension-brake 42mm.png)
