DLG Series is a product that integrates a stepping motor and a ball screw with a guide to achieve precise linear motion.
With guide supported, DLG series enables reduction of mechanical components such as couplings or other parts. So it enables customer to design miniaturized and high-precision positioning of the device.
Size 28 [NEMA 11] size of DLG series is a smallest DLG product with 30mm stroke. If customer wants, non-guide type of DRS series can be also optional.

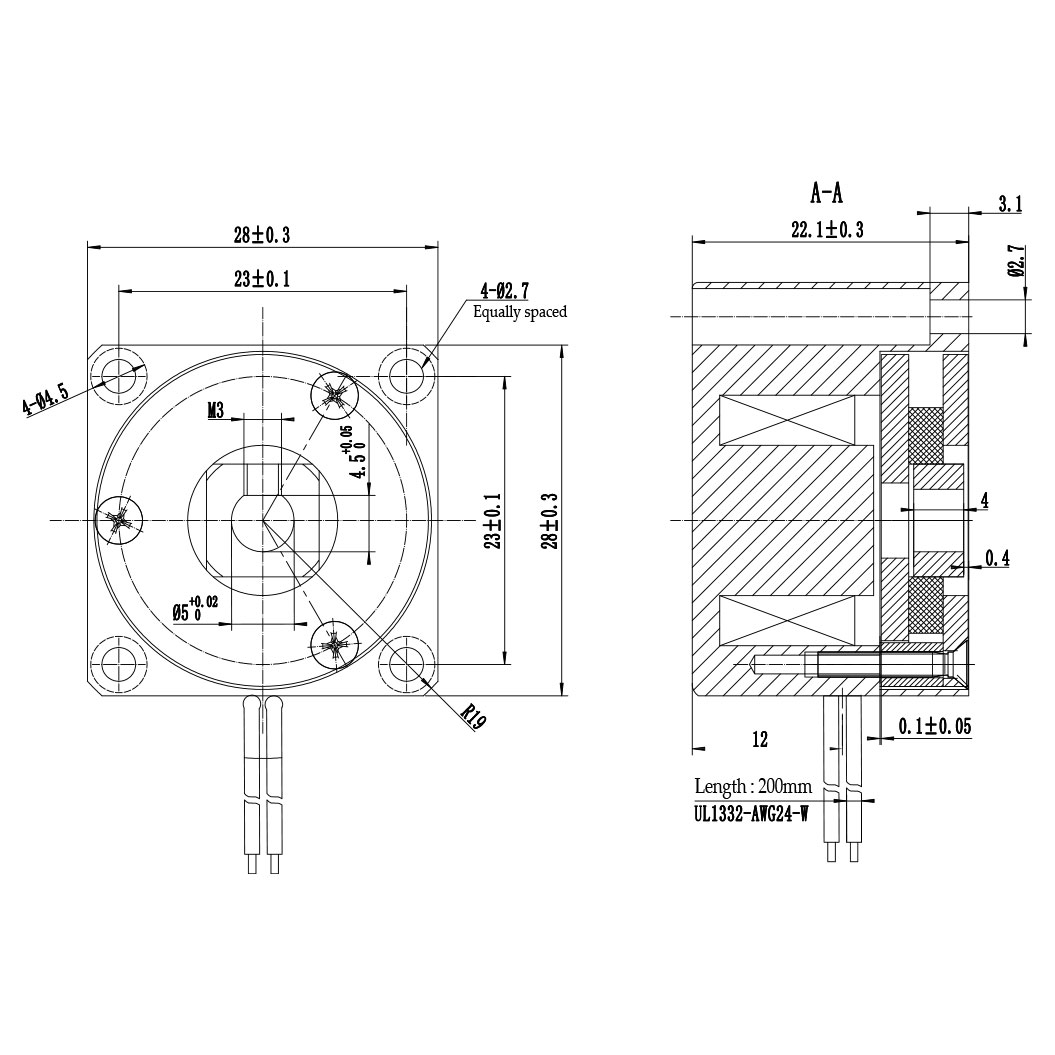

![Size 11 [28mm] Ball Screw Linear Actuators](/img/products/02/DLG_size11(28mm).png)
In a mobile environment, you can move left and right to see the contents (tables).
| Model No. | Rated Voltage[V] | Current[A] | Resistance[Ω] | Inductance[mH] | Lead Wire No. | Motor Length "L"[mm] |
|---|---|---|---|---|---|---|
| DLG28S1 | 2.1 | 1 | 2.1 | 1.5 | 4 | 33.5 |
| DLG28D1 | 3.9 | 0.95 | 4.1 | 4 | 4 | 45 |
In a mobile environment, you can move left and right to see the contents (tables).
| Stroke | 30mm |
|---|---|
| Maximum Thrust | 30N |
| Repeat Positioning Accuracy | 0.01mm |
| Optional Ball Screw Lead | 1mm/2mm |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 100 | 108 | 120 | 125 | 128 | 200 | 250 | 256 | 300 | 360 | 400 | 500 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 625 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | - | - | - | - | - | - | - | - | - |
| Differential output | - | C | - | - | - | - | - | - |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 360 | 500 | 512 | 1000 | 1024 | 2000 | 2048 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| Differential output | A | B | C | D | E | F | G |
* Among EK5 Encoder, EK5D option is only available for DLG28 Actuator.
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 400 | 500 | 1000 | 2000 |
| Single ended output | 0 | 1 | 3 | 6 |
| Differential output | A | B | D | G |
