Size 34 [86mm] Stepper Lead Screw Linear Actuator is our biggest in size, and can provide up to 2270N of continuous thrust.

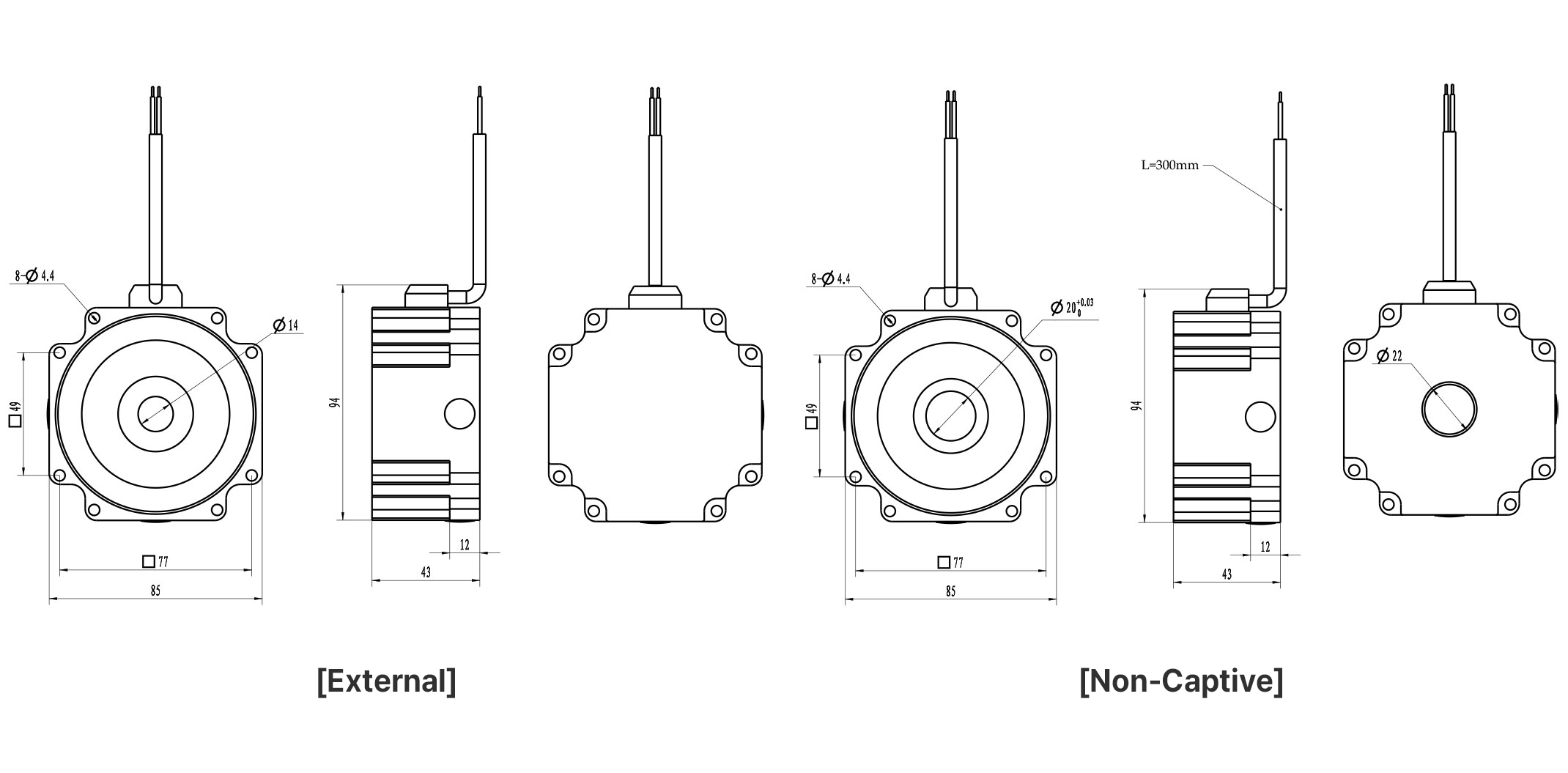

Size 34 Stepper Lead Screw Linear Actuator has two form factors available - External and Non-Captive
![Size 34 [86mm] Stepper Lead Screw Linear Actuators images](/img/products/01/stepper_size34(86mm).png)
In a mobile environment, you can move left and right to see the contents (tables).
| Motor | Voltage[V] | Current[A [RMS]] | Resistance[Ω] | Inductance[mH] | Weight[g] | Lead Wire No. | Motor Length[mm] |
|---|---|---|---|---|---|---|---|
| 34-2113 | 12 | 1.3 | 9.2 | 71 | 2370 | 4 | 76 |
| 34-2130 | 5.7 | 3 | 1.9 | 15 | 2370 | 4 | 76 |
| 34-2155 | 2.85 | 5.5 | 0.52 | 4.5 | 2370 | 4 | 76 |
Motor Insulation Class B, Motor Temperature Rise 80°C, Ambient Temperature -20℃~55℃
In a mobile environment, you can move left and right to see the contents (tables).
| Screw Dia.[inch] | Screw Dia.[mm] | Lead[inch] | Lead[mm] | Lead Code | Travel Per Step @ 1.8° [mm]* |
|---|---|---|---|---|---|
| 0.625 | 15.875 | 0.1 | 2.54 | K | 0.0127 |
| 0.625 | 15.875 | 0.125 | 3.175 | L | 0.0159 |
| 0.625 | 15.875 | 0.2 | 5.08 | R | 0.0254 |
| 0.625 | 15.875 | 0.25 | 6.35 | S | 0.0318 |
| 0.625 | 15.875 | 0.5 | 12.7 | Y | 0.0635 |
| 0.625 | 15.875 | 1 | 25.4 | Z | 0.127 |
* Value truncated
* Motor winding parameters and screw length can be customized according to customer requirements
If customer's applications require greaseless screw and nut combination, DINGS' offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in DINGS' and all types of linear actuators such as External, Non-Captive, Electric Cylinder and Kaptive.
In addition, anti-backlash nut also can be combined with teflon coated lead screw too.
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 64 | 100 | 200 | 500 | 1000 | 1800 | 2000 | 2500 | 3600 | 4000 | 5000 | 7200 | 8000 | 10000 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M |
![Size 34 [86mm]](/img/products/09/brake/34/1. Image_Brake 86mm.png)
In a mobile environment, you can move left and right to see the contents (tables).
| Rated voltage | DC 24V ± 5% | |
|---|---|---|
| Resistance | 69Ω ± 10% | |
| Power | 12W | |
| Hold torque | >6N.M | |
| Insulation | B | |
| Insulation resistance | >100MΩ (DC500V) | |
| Dielectric strength | AC 1000V for 1 sec | |
| Retraction time | 50ms | |
| Release time | 50ms | |
| Gyration gap | 1° | |
| Emergency brake time | 200 | |
| Lifetime | 2,000,000 times | |
| Noise level | <60db | |
![Size 34 [86mm]](/img/products/09/brake/34/2. dimension-brake 86mm.png)
