Size 24 [60mm] Stepper Lead Screw Linear Actuator provides high performance, a longer working cycle, and is capable of 1050N.

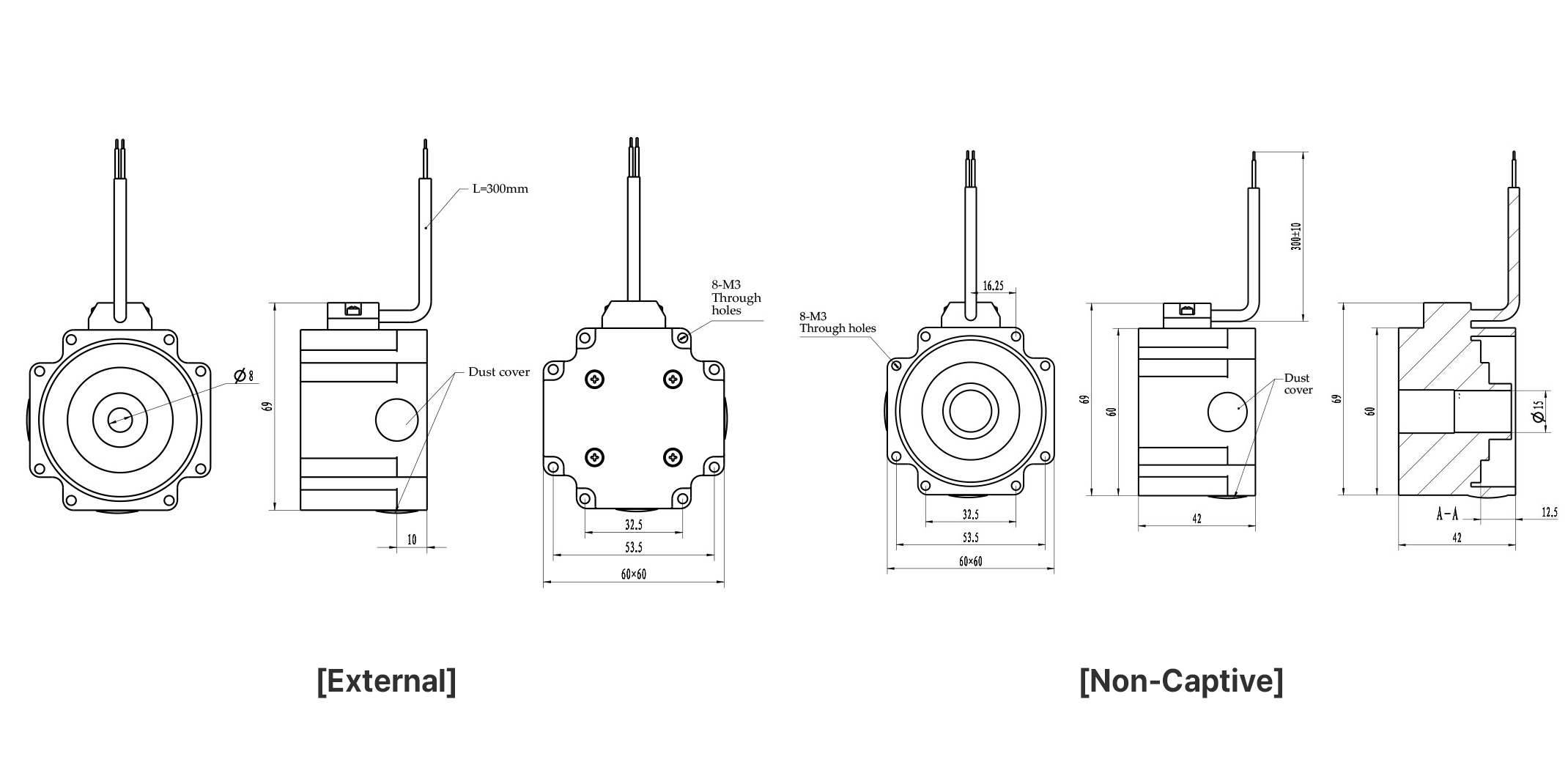

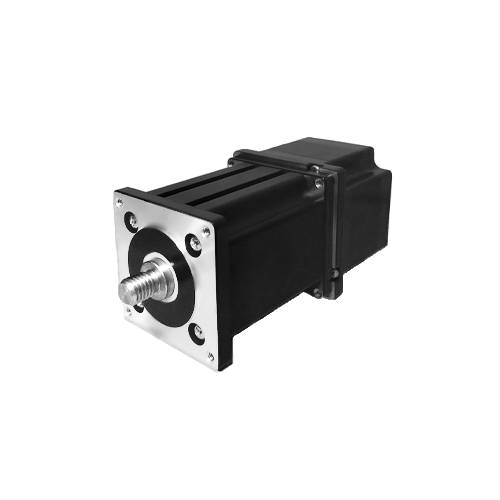

Size 24 Stepper Lead Screw Linear Actuator has four form factors available - External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
![Size 24 [60mm] Stepper Lead Screw Linear Actuators images](/img/products/01/stepper_size24(60mm).png)
In a mobile environment, you can move left and right to see the contents (tables).
| Motor | Voltage[V] | Current[A] | Resistance[Ω] | Inductance[mH] | Weight[g] | Lead Wire No. | Motor Length[mm] |
|---|---|---|---|---|---|---|---|
| 24-2120 | 3 | 2 | 1.5 | 3.9 | 680 | 4 | 47 |
| 24-2130 | 1.8 | 3 | 0.6 | 1.6 | 680 | 4 | 47 |
| 24-2140 | 1.6 | 4 | 0.4 | 0.9 | 680 | 4 | 47 |
| 24-2230 | 3 | 3 | 1 | 3.4 | 1080 | 4 | 68.3 |
| 24-2240 | 2.4 | 4 | 0.6 | 1.9 | 1080 | 4 | 68.3 |
| 24-2250 | 1.5 | 5 | 0.3 | 1.2 | 1080 | 4 | 68.3 |
Motor Insulation Class B, Motor Temperature Rise 80°C, Ambient Temperature -20℃~55℃
In a mobile environment, you can move left and right to see the contents (tables).
| Screw Dia.[inch] | Screw Dia.[mm] | Lead[inch] | Lead[mm] | Lead Code | Travel Per Step @ 1.8° [mm]* | Travel Per Step @ 0.9° [mm]* |
|---|---|---|---|---|---|---|
| 0.375 | 9.525 | 0.025 | 0.635 | A | 0.0032 | 0.0016 |
| 0.375 | 9.525 | 0.05 | 1.27 | D | 0.0064 | 0.0032 |
| 0.375 | 9.525 | 0.0625 | 1.5875 | F | 0.0079 | 0.004 |
| 0.375 | 9.525 | 0.083 | 2.1167 | H | 0.0106 | 0.0053 |
| 0.375 | 9.525 | 0.1 | 2.54 | K | 0.0127 | 0.0064 |
| 0.375 | 9.525 | 0.125 | 3.175 | L | 0.0159 | 0.0079 |
| 0.375 | 9.525 | 0.167 | 4.2333 | P | 0.0212 | 0.0106 |
| 0.375 | 9.525 | 0.2 | 5.08 | R | 0.0254 | 0.0127 |
| 0.375 | 9.525 | 0.25 | 6.35 | S | 0.0318 | 0.0159 |
| 0.375 | 9.525 | 0.375 | 9.525 | V | 0.0476 | 0.0238 |
| 0.375 | 9.525 | 0.384 | 9.7536 | W | 0.0488 | 0.0244 |
| 0.375 | 9.525 | 0.4 | 10.16 | X | 0.0508 | 0.0254 |
| 0.375 | 9.525 | 0.5 | 12.7 | Y | 0.0635 | 0.0318 |
| 0.375 | 9.525 | 1 | 25.4 | Z | 0.127 | 0.0635 |
| 0.394/0.472 | 10/12 | 0.0787 | 2 | G | 0.01 | 0.005 |
| 0.394/0.472 | 10/12 | 0.3937 | 10 | C | 0.05 | 0.025 |
| 0.394 | 10 | 0.7874 | 20 | I | 0.1 | 0.05 |
| 0.472 | 12 | 0.1969 | 5 | E | 0.025 | 0.0125 |
| Size A (mm) |
Stroke B (mm) |
Size L (mm) | |
|---|---|---|---|
| 45.70 | 12.70 | Single Stack Motor 47 |
Double Stack Motor 68.3 |
| 52.05 | 19.05 | ||
| 58.40 | 25.40 | ||
| 64.80 | 31.80 | ||
| 71.10 | 38.10 | ||
| 83.80 | 50.80 | ||
| 96.50 | 63.50 | ||
| Size A (mm) |
Stroke B (mm) |
Size L (mm) | |
|---|---|---|---|
| Single Stack L=47 |
Double Stack L=68.3 |
||
| 24.2 | 12.7 | 5.3 | 0 |
| 30.55 | 19.05 | 11.65 | 1.65 |
| 36.9 | 25.4 | 18 | 8 |
| 43.25 | 31.75 | 24.35 | 14.35 |
| 49.6 | 38.1 | 30.7 | 20.7 |
| 62.3 | 50.8 | 43.4 | 33.4 |
| 75 | 63.5 | 56.1 | 46.1 |
If customer's applications require greaseless screw and nut combination, DINGS' offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in DINGS' and all types of linear actuators such as External, Non-Captive, Electric Cylinder and Kaptive.
In addition, anti-backlash nut also can be combined with teflon coated lead screw too.
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 64 | 100 | 200 | 500 | 1000 | 1800 | 2000 | 2500 | 3600 | 4000 | 5000 | 7200 | 8000 | 10000 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M |
* EK3 Encoder is only available for NEMA 24 (60mm) Non-Captive, Captive, Kaptive linear actuator.
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 400 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | 0 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | C | D | E | F | G | H | I | J |
