Size 17 [42mm] Stepper Lead Screw Linear Actuator is widely used for linear movement applications, providing up to 330N of continuous thrust.

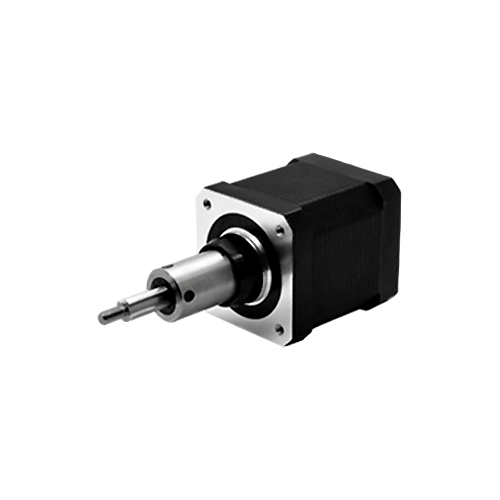

Size 17 Stepper Lead Screw Linear Actuator has four form factors available - External, Non-Captive, Electrical Cylinder (Captive) and Kaptive.
![Size 17 [42mm] Stepper Lead Screw Linear Actuators images](/img/products/01/stepper_size17(42mm).png)
In a mobile environment, you can move left and right to see the contents (tables).
| Motor | Voltage[V] | Current[A] | Resistance[Ω] | Inductance[mH] | Weight[g] | Lead Wire No. | Motor Length[mm] |
|---|---|---|---|---|---|---|---|
| 17-2105 | 7.2 | 0.5 | 14.4 | 19.8 | 254 | 4 | 34.1 |
| 17-2110 | 3.8 | 1 | 3.8 | 5 | 254 | 4 | 34.1 |
| 17-2115 | 2.85 | 1.5 | 1.9 | 2.2 | 254 | 4 | 34.1 |
| 17-2205 | 11 | 0.5 | 22 | 46 | 386 | 4 | 48.1 |
| 17-2212 | 4.5 | 1.2 | 3.8 | 8 | 386 | 4 | 48.1 |
| 17-2225 | 2.2 | 2.5 | 1 | 1.8 | 386 | 4 | 48.1 |
Motor Insulation Class B, Motor Temperature Rise 80°C, Ambient Temperature -20℃~55℃
In a mobile environment, you can move left and right to see the contents (tables).
| Screw Dia.[inch] | Screw Dia.[mm] | Lead[inch] | Lead[mm] | Lead Code | Travel Per Step @ 1.8° [mm]* | Travel Per Step @ 0.9° [mm]* |
|---|---|---|---|---|---|---|
| 0.25 | 6.35 | 0.024 | 0.6096 | AA | 0.003 | 0.0015 |
| 0.236/0.25/0.315 | 6/6.35/8 | 0.0394 | 1 | AB | 0.005 | 0.0025 |
| 0.25 | 6.35 | 0.025 | 0.635 | A | 0.003175 | 0.0015 |
| 0.25 | 6.35 | 0.048 | 1.2192 | B | 0.006 | 0.003 |
| 0.25 | 6.35 | 0.05 | 1.27 | D | 0.0064 | 0.0032 |
| 0.25 | 6.35 | 0.0625 | 1.5875 | F | 0.0079 | 0.004 |
| 0.25 | 6.35 | 0.096 | 2.4384 | J | 0.0122 | 0.0061 |
| 0.25 | 6.35 | 0.1 | 2.54 | K* | 0.0127 | 0.0064 |
| 0.25 | 6.35 | 0.125 | 3.175 | L* | 0.0159 | 0.0079 |
| 0.25 | 6.35 | 0.192 | 4.8768 | Q | 0.024 | 0.0122 |
| 0.25 | 6.35 | 0.2 | 5.08 | R* | 0.0254 | 0.0127 |
| 0.25 | 6.35 | 0.25 | 6.35 | S* | 0.0318 | 0.0159 |
| 0.25 | 6.35 | 0.3333 | 8.4667 | U | 0.0423 | 0.0212 |
| 0.25 | 6.35 | 0.384 | 9.7536 | W* | 0.0488 | 0.0244 |
| 0.25 | 6.35 | 0.5 | 12.7 | Y* | 0.0635 | 0.0318 |
| 0.25 | 6.35 | 1.0 | 25.4 | Z* | 0.127 | 0.0635 |
| 0.25 | 6.35 | 0.0313 | 0.794 | N | 0.00397 | 0.002 |
| 0.315 | 8 | 0.1575 | 4 | M | 0.02 | 0.01 |
| 0.315 | 8 | 0.315 | 8 | T | 0.04 | 0.02 |
| 0.25/0.315 | 6.35/8 | 0.0787 | 2 | G | 0.01 | 0.005 |
| 0.236/0.315 | 6/8 | 0.1969 | 5 | E | 0.025 | 0.0125 |
| 0.315 | 8 | 0.3937 | 10 | C | 0.05 | 0.025 |
| Size A (mm) |
Stroke B (mm) |
Size L (mm) | |
|---|---|---|---|
| 35.70 | 12.70 | Single Stack Motor 34.1 |
Double Stack Motor 48.1 |
| 42.05 | 19.05 | ||
| 48.40 | 25.40 | ||
| 54.80 | 31.80 | ||
| 61.10 | 38.10 | ||
| 73.80 | 50.80 | ||
| 86.50 | 63.50 | ||
| Size A (mm) |
Stroke B (mm) |
Size L (mm) | |
|---|---|---|---|
| Single Stack L=34.1 |
Double Stack L=48.1 |
||
| 18.5 | 12.7 | 3.6 | 0 |
| 24.85 | 19.05 | 9.95 | 4.95 |
| 31.2 | 25.4 | 16.3 | 11.3 |
| 37.55 | 31.75 | 22.65 | 17.65 |
| 43.9 | 38.1 | 29 | 24 |
| 56.6 | 50.8 | 41.7 | 36.7 |
| 69.3 | 63.5 | 54.4 | 49.4 |
If customer's applications require greaseless screw and nut combination, DINGS' offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in DINGS' and all types of linear actuators such as External, Non-Captive, Electric Cylinder and Kaptive.

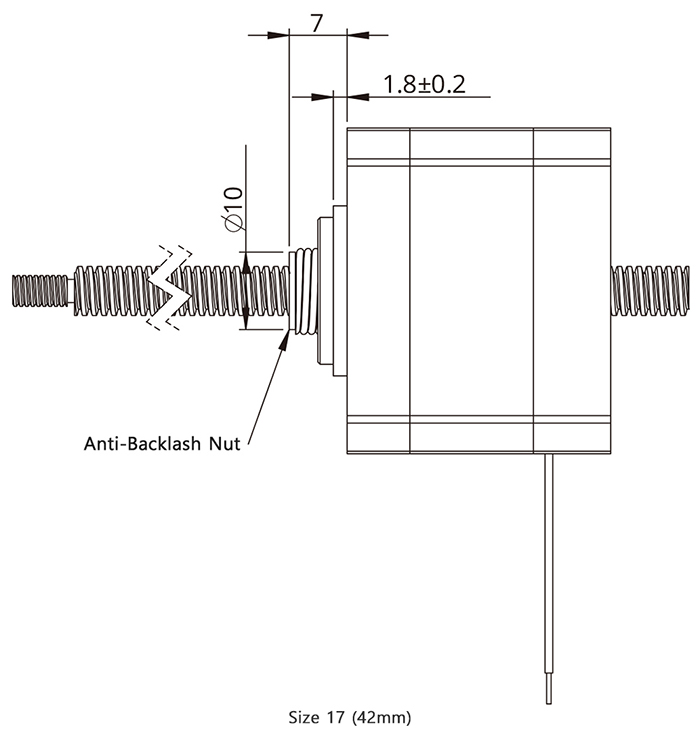

In addition, anti-backlash nut also can be combined with teflon coated lead screw too.
* According to different screw lead code selection, length of Anti-Backlash nut can be changed.
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 100 | 108 | 120 | 125 | 128 | 200 | 250 | 256 | 300 | 360 | 400 | 500 | 1000 | 512 | 720 | 800 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
* EK1 Encoder is only available for NEMA 17 (42mm) External, Captive linear actuator.
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 625 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | - | - | - | - | - | - | - | - | - |
| Differential output | - | C | - | - | - | - | - | - |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 360 | 500 | 512 | 1000 | 1024 | 2000 | 2048 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
| Differential output | A | B | C | D | E | F | G |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 400 | 500 | 1000 | 2000 |
| Single ended output | 0 | 1 | 3 | 6 |
| Differential output | A | B | D | G |
* KPL 28 Encoder is only available for NEMA 17 (42mm) External, Captive linear actuator.
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 400 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | 0 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | C | D | E | F | G | H | I | J |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 400 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 |
| Single ended output | 0 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Differential output | A | C | D | E | F | G | H | I | J |
* KPL 56 Encoder is only available for NEMA 17 (42mm) Kaptive linear actuator.
