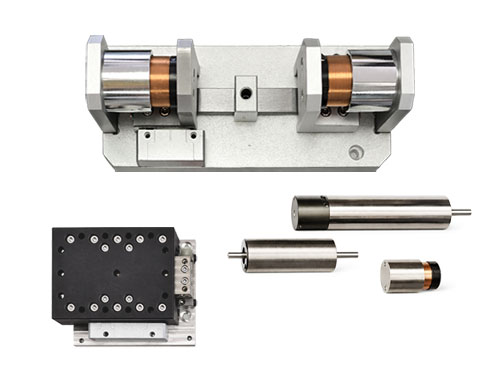

DINGS' offers a Voice Coil lineup scaled from individual components to modules and complete stages, tailored to the required precision level and system complexity. From backlash-free Voice Coil Motors (VCM) and guide-integrated linear actuators (VCA), to sensor-compatible modular solutions and encoder-based high-precision linear stages — we provide the optimal solution for your application.

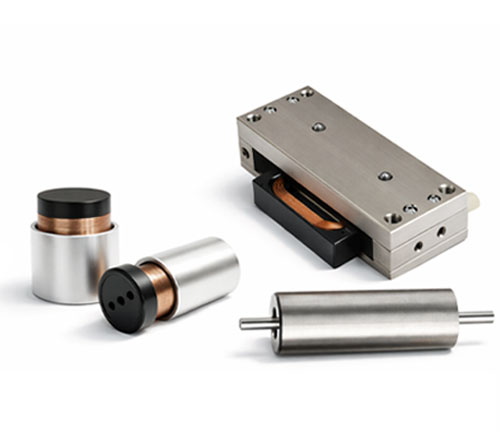

An entry-level Voice Coil series optimized for basic linear actuation and repetitive motion. Offering cost-effective performance with open-loop control capable of driving up to 100 Hz, it is well-suited for equipment requiring fundamental linear drive and repetitive operation.
Compatible Drive DINGS' DS-OLBV1-FR54
Control Method Open-loop
Max. Drive Frequency 100 Hz

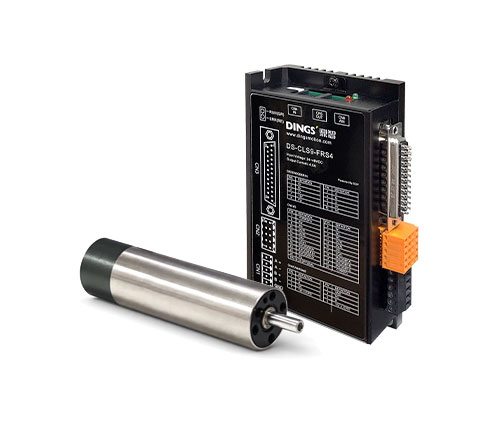

A performance-level Voice Coil Actuator featuring Hall sensor feedback. It delivers improved positional stability and repeatability over open-loop operation, offering a well-balanced solution between entry and precision levels — with simplified closed-loop control that keeps cost and complexity in check.
Compatible Drive DINGS' DS-CLS9-FR54-01
Control Method Hall Sensor-based Simple Closed-loop

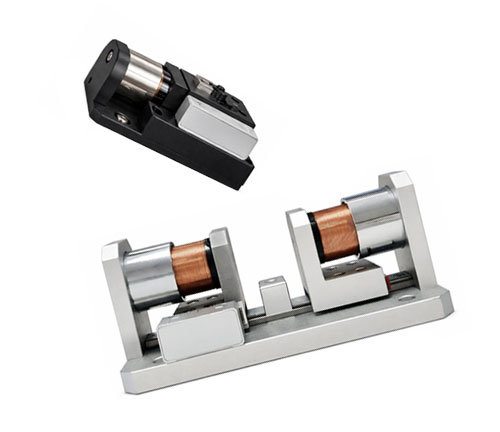

A precision-level Voice Coil linear drive module with linear encoder feedback. Capable of position control at 0.1–1 μm resolution, it is ideal for equipment requiring fine positioning and precise alignment. Compatible with Welcon Systems Pixie and Falcon drives for high-resolution encoder-based closed-loop control and μm-level precision positioning.
Compatible Drive Welcon Systems Pixie · Falcon
Control Method Encoder-based Closed-loop
Resolution 0.1 ~ 1 μm

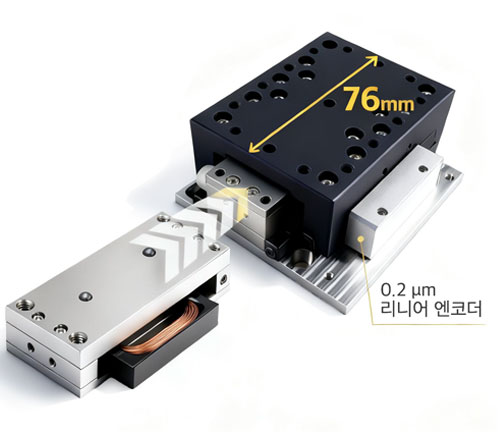

An advanced-level Voice Coil Stage solution co-developed by DINGS' and INNOTRO. Built on a high-precision linear encoder-based stage structure, it achieves 0.2 μm repeatability and fast response characteristics — optimized for semiconductor, optical, and precision inspection equipment. Compatible with Welcon Systems Merlin for multi-feedback high-performance closed-loop control and high-speed, high-precision stage positioning.
Compatible Drive Welcon Systems Merlin
Control Method Multi-feedback Closed-loop
Repeatability 0.2 μm
DINGS' Voice Coil Motor Series — Press Release
Read Article ›
