Stand Alone Stepper Electronics

DINGS' offers 3 different microstepping drivers which is pulse and direction mode based. And also dynamic closed loop stand alone electronic is available.

From Min. 2.2A [up to NEMA17 Stepper size] to Max. 7.6A [up to NEMA34 Stepper size], convenient drivers can be chosen. Pulse/RS485 supported closed loop driver and Pulse/RS485/CC-Link supported open loop electronics are available.

Stand Alone Stepper Electronics images

DS-OLF2-FPD

DS-OLS2-FPD images
  1. 5 Pulse input type of Open Loop Step Motor Drive
  2. Microstep resolution can be set through DIP switch setting
  3. Output current can be set through DIP switch setting
  4. Protection alarm output
  5. Certified CE and RoHS
DS-OLF2-FPD images

In a mobile environment, you can move left and right to see the contents (tables).

Adapted motor Suitable for five-phase hybrid stepping motor, maximum supported 2.4A (peak)
Power supply 24 ~ 48VDC
Output current 0.2A - 2.4A / phase (peak)
Driving method Full-bridge bipolar PWM
Control Method Pulse direction control
Encoder support No
Input signal Pulse signal Optocoupler input voltage H = 3.5 – 5 V
L = 0 – 0.8 V, Current 5 - 8 mA
Enable signal
Direction signal
Select signal
Output signal Alarm output Optocoupler isolation output, max. withstand voltage 30VDC
max. saturation current 10mA
TIM signal
Size (mm) 85 × 21 × 56
Weight about 96g
Operating environment Application Avoid dust, oil mist and corrosive gas
Humidity < 85% RH, no condensation
Temperature 0 ~ 40°C
Heat dissipation Install in a ventilated environment
DS-OLF2-FPD images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60°C and motor is within 80°C.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary,
install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-OLF2-FPD PDF 789.69 KB Download

DS-OLS2-FPD

DS-OLS2-FPD images
  1. 32-bit DSP Technology
  2. Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
  3. 3-digit dialing code adjustable, 8 output current settings
  4. Power-on automatic setting, automatic current halving at rest
  5. Precise current control significantly reduces motor heating
  6. Support single and double pulses, dial selection
  7. Drive 4,6,8-wire two-phase stepper motor
  8. Optically isolated inputs
  9. 70KHz max pulse input frequency
  10. 8 output current settings of 0.3 – 2.2A via DIP Switches
  11. Over-voltage and over-current protections
  12. External alarm output, maximum output current 100mA, withstand 24Vdc
DS-OLS2-FPD images

In a mobile environment, you can move left and right to see the contents (tables).

Adapted motor Size 6, 8, 11, 14, 17 of step motors
Project Min Typical Max Unit
Output Current 0.3 - 2.2 A
Input Power Voltage 18 24 36 VDC
Control Signal Input Current 7 10 16 mA
Pulse Input Frequency 0 - 200 KHz
Isolation Resistance 100 - -
Cooling Natural Cooling or Forced Cooling
Operating Environment Environment -It should not be placed next to other heating equipment.
-It should avoid dust, oil mist, corrosive gas and places with too high humidity and strong vibration. Flammable gas and conductive dust are prohibited.
Humidity 40~90%RH
Temperature 0~50℃
Vibration 10-55Hz/0.15mm
Storage Temperature -20 ~ 65 ℃
Weight 150g
DS-OLS2-FPD images

* Side/Vertical mounting is recommended for better heat cooling. Terminal size and heat dissipation space need to be considered in installation design.

catalog images
manual Downloads List
File Name Format Size Download
DS-OLS2-FPD Manual PDF 916.29 KB Download

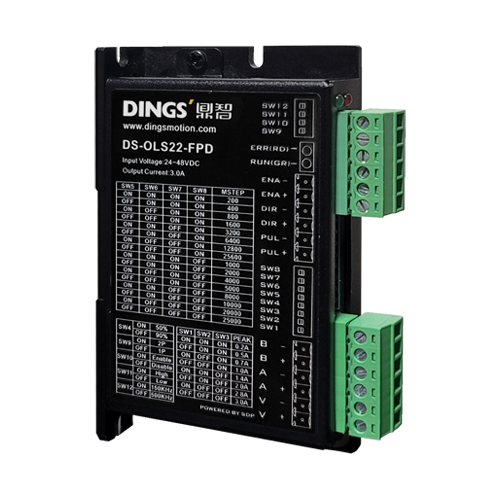

DS-OLS22-FPD

DS-OLS22-FPD images
  1. Input power:DC 12V - 48V
  2. 8 Output current settings
  3. PWM constant current bipolar subdivision drive
  4. 16 Micro-step resolutions of DIP
  5. Single / Double pulse selection
  6. Optically isolated input function
  7. Motor short circuit protection
  8. Compact design, low noise, low vibration.
  9. With off-line function
DS-OLS22-FPD images

In a mobile environment, you can move left and right to see the contents (tables).

Adapted Motor Size 6, 8, 11, 14, 17, 23 of step motors
Power Supply DC 12 – 48 V
Output Current 0.3 - 3A /phase
Driving Method Full-bridge bipolar PWM
Input Signal Pulse Signal Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V
Current 6 - 15 mA
Offline Signal
Direction Signal
Size (mm) 92.5 × 21 × 56 mm
Weight About 96g
Operating
Environment
Pulse Signal Avoid dust, oil mist and corrosive gas
Humidity <85% RH, no condensation
Temperature 0 ~ 40°C
Heat Dissipation Install in a ventilated environment
DS-OLS22-FPD images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download

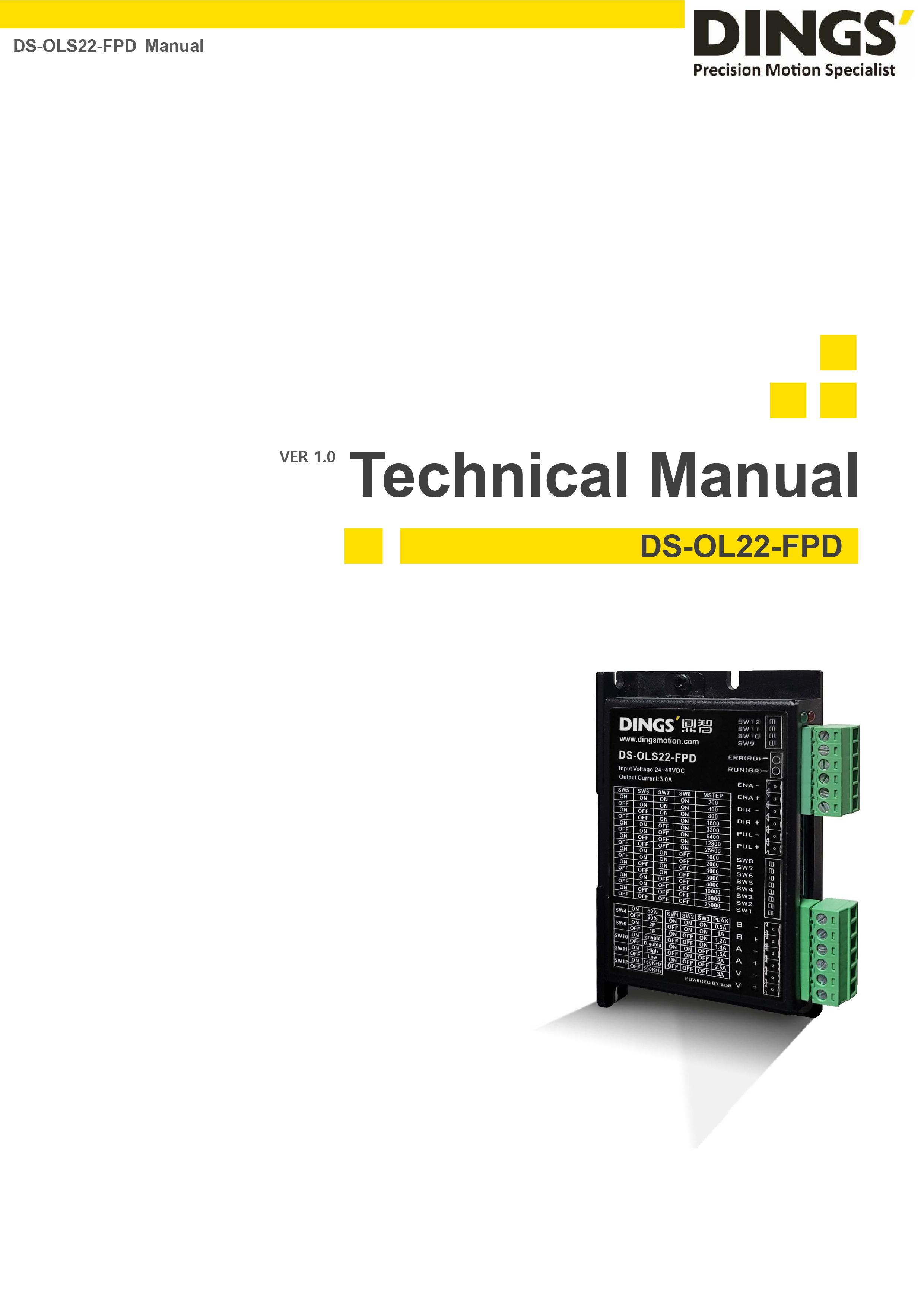

DS-OLS22-FPD Manual PDF 1.07 MB Download

DS-OLS4-FPD

DS-OLS4-FPD images
  1. 32-bit DSP Technology
  2. Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
  3. Built-in Micro-stepping
  4. Power-on automatic setting, automatic current halving at rest
  5. Precise current control significantly reduces motor heating
  6. Automatic idle current reduction to 50% , SW4 selection
  7. Support single and double pulses, dial selection
  8. Drive 4,6,8-wire two-phase stepper motor
  9. Optically isolated inputs
  10. 200KHz max pulse input frequency
  11. 4-digit dialing code, adjustable 16 output current settings
  12. Over-voltage and over-current protections
  13. External alarm output, maximum output current 100mA, withstand 24Vdc
DS-OLS2-FPD images

In a mobile environment, you can move left and right to see the contents (tables).

Adapted Motor Size 17, 23, 24 of step motors
Project Min Typical Max Unit
Output Current 1.0 - 4.2 A
Input Power Voltage 20 24/36 50 VDC
Control Signal Input Current 7 10 16 mA
Pulse Input Frequency 0 - 200 KHz
Isolation Resistance 100 - -
Cooling Natural Cooling or Forced Cooling
Operating Environment Environment -It should not be placed next to other heating equipment.
-It should avoid dust, oil mist, corrosive gas and places with too high humidity and strong vibration. Flammable gas and conductive dust are prohibited.
Humidity 40~90%RH
Temperature 0~50℃
Vibration 10-55Hz/0.15mm
Storage Temperature -20 ~ 65 ℃
Weight 250g
DS-OLS2-FPD images

* Side/Vertical mounting is recommended for better heat cooling. Terminal size and heat dissipation space need to be considered in installation design.

catalog images
manual Downloads List
File Name Format Size Download
DS-OLS4-FPD Manual PDF 915.66 KB Download

DS-OLS8-FPD

DS-OLS8-FPD images
  1. Input power:DC 24V - 72V
  2. 8 Output current settings
  3. PWM constant current bipolar subdivision drive
  4. 16 Micro-step resolutions of DIP
  5. Single / Double pulse selection
  6. Optically isolated input function, 5-24VDC compatible input
  7. Motor short circuit protection
  8. Control signal to realize the functions of driver enable, start stop, emergency stop, limit, etc.
  9. Compact design, low noise, low vibration
  10. With off-line function
DS-OLS2-FPD images

In a mobile environment, you can move left and right to see the contents (tables).

Applied Motor Size 23, 24, 34 of step motors
Power Supply DC 24 ~ 72V
Output Current 2.8A-7.8A/Phase
Drive Method Full-bridge bipolar PWM
Input Signal Pulse Signal Optocoupler input voltage H = 3.5 - 26V , L = 0 - 0.8V
Conduction current 6-15mA
Offline Signal
Direction Signal
Output Signal Alarm output Optocoulper isolation output, maximum withstand voltage 30VDC, maximum saturation current 50mA
Size(mm) 118 × 78 × 34mm
Weight About 300g
Operation Environment Precaution Avoid dust, oil mist and corrosive gas
Humidity < 85 % RH, No condensation
Temperature 0°C - +40°C
Cooling Installed in a ventilated environment
DS-OLS2-FPD images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-OLS8-FPD Manual PDF 910.52 KB Download

DS-OLS7-FRS4

DS-OLS7-FRS4 images
  1. Input power: DC 24V-48V
  2. PWM constant current bipolar subdivision drive
  3. Single / Double pulse selection
  4. Optically isolated input function
  5. Motor short circuit protection
  6. Compact design, low noise and low vibration
  7. Adjustable driving current peak below 3.2 A
  8. Support RS 485 communication
DS-OLS7-FRS4 images

In a mobile environment, you can move left and right to see the contents (tables).

Applied Motor Size 6, 8, 11, 14, 17 of step motors
Power supply DC 24 ~ 48V
Output current 0.1A-3.2A/ phase
Drive Method Full-bridge bipolar PWM driver
Input signal IN1 (DIR) Signal Optocoupler input voltage H = 3.5 - 26V , L = 0 - 0.8V
On current 6-15mA
IN2 (STEP) Signal
Output signal Alarm Output Optocoupler isolated output, highest withstand voltage30VDC,
Maximum saturation current 50mA
Size(mm) 94 × 77 × 27mm(Including terminal block)
Weight About 175 g
Operation
Environment
Precaution Avoid dust, oil mist and corrosive gases
Humidity < 85 % RH, No condensation
Temperature 0°C - +40°C
Cooling Installed in a ventilated environment
DS-OLS7-FRS4 images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-OLS7-FRS4 Manual PDF 1.13 MB Download
Simple Tuner Pro Quick User Guide PDF 1.22 MB Download
Software Downloads List
File Name Format Size Download
DINGS' Tuner Pro v4.1.11 ZIP 5.93 MB Download
FTDI USB Installation ZIP 5.85 MB Download

DS-OLS8-FRS4

DS-OLS8-FRS4 images
  1. Input power : DC 24V-72V
  2. PWM constant current bipolar subdivision drive
  3. Single / Double pulse selection
  4. Optically isolated input function
  5. Motor short circuit protection
  6. Compact design, low noise and low vibration
  7. Adjustable driving current peak below 6.5A
  8. Support RS 485 communication
DS-OLS8-FRS4 images

In a mobile environment, you can move left and right to see the contents (tables).

Applied Motor Size 23, 24, 34 of step motors
Power supply DC 24 ~ 72V
Output current 0.1A-6.5A/Phase
Drive Method Full-bridge bipolar PWM driver
Input signal Pulse Signal Optocoupler input voltage H = 3.5 - 26V , L = 0 - 0.8V
On current 6-15mA
Offiline Signal
Direction Signal
Output signal Alarm Output Optocoupler isolated output, Maximum withstand voltage30VDC,
Maximum saturation current 50mA
Size(mm) 118 × 78 × 34mm
Weight About 300g
Operation
Environment
Precaution Avoid dust, oil mist and corrosive gases
Humidity < 85 % RH, No condensation
Temperature 0°C - +40°C
Cooling Installed in a ventilated environment
DS-OLS8-FRS4 images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.

2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃

3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range

catalog images
manual Downloads List
File Name Format Size Download
DS-OLS8-FRS4 Manual PDF 1.41 MB Download
Simple Tuner Pro Quick User Guide PDF 1.22 MB Download
Software Downloads List
File Name Format Size Download
DINGS' Tuner Pro v4.1.11 ZIP 5.93 MB Download
FTDI USB Installation ZIP 5.85 MB Download

DS-CLS9-FRS4

DS-CLS9-FRS4 images
  1. Input power : DC 24V-48V
  2. Output rated current (peak value): 0~4.5A/phase
  3. Pulse direction and RS485 control mode are optional to support MODBUS RTU
ST-484 images

In a mobile environment, you can move left and right to see the contents (tables).

Model DS-CLS9-FRS4
Power supply DC 24V~48V
Output Current 4.5 A (0-peak) Instantaneous current
Adapted Motor Encoder 2-phase bipolar stepper motor Size 6, 8, 11, 14, 17, 23, 24
Drive Mode PWM constant current drive
I/O Signals Input
· Pulse, direction input(configurable as digital input)
· 5 Digital input
· Encoder input (A, B, Z)
Output
· 4 digital outputs
· Encoder signal output
(differential A, B, Z)
The rest of input/output can be freely configured via communication, except that the encoder output is fixed.
Digital input details /SV ON (Servo On)
/RESET (Alarm reset)
/START (Motor start/stop)
/JOG (Motor jog)
/HOME (Zero point)
Digital output details /IN POSITION
/ALARM
LED indication Status, fault 2 indicators
communication I/F RS485, up to 32 nodes MODBUS RTU protocol,baud rate: 19200bps (default) or according to the agreement
Control Method Position control mode According to pulse positioning, according to RS485 communication positioning
Size(mm) 77 x 134 x 34 Without terminal block
weight About 350g Without terminal block
Operating temperature/humidity 0~45°C, 85%RH or less Prevent condensation
Storage temperature 0~85°C, 85% or less Prevent condensation
Ambient gas Prevent corrosive gases
ST-484 images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-CLS9-FRS4 Manual PDF 1.53 MB Download
Simple Tuner Pro Quick User Guide PDF 1.22 MB Download
Software Downloads List
File Name Format Size Download
DINGS' Tuner Pro v4.1.11 ZIP 5.93 MB Download
FTDI USB Installation ZIP 5.85 MB Download

DS-CLS9-FRS4-01

DS-CLS9-FRS4-01 images
  1. Input power : DC 24V-48V
  2. Output current : 0 - 4.5A
  3. Pulse / Direction, RS-485 communication selection support MODBUS-RTU protocol
  4. Torque control mode
  5. Encoder signal output
ST-484 images

In a mobile environment, you can move left and right to see the contents (tables).

Model DS-CLS9-FRS4-01
Power supply DC 24V~48V
Output Current 4.5 A (0-peak) Instantaneous current
Adapted Motor Encoder 2-phase bipolar stepper motor Size 6, 8, 11, 14, 17, 23, 24
Drive Mode PWM constant current drive
I/O Signals Input
· Pulse, direction input(configurable as digital input)
· 5 Digital input
· Encoder input (A, B, Z)
Output
· 4 digital outputs
· Encoder signal output
(differential A, B, Z)
The rest of input/output can be freely configured via communication, except that the encoder output is fixed.
Digital input details /SV ON (Servo On)
/RESET (Alarm reset)
/START (Motor start/stop)
/JOG (Motor jog)
/HOME (Zero point)
Digital output details /IN POSITION
/ALARM
LED indication Status, fault 2 indicators
Communication I/F RS485, up to 32 nodes MODBUS RTU protocol,baud rate: 19200bps (default) or according to the agreement
Control Method Position control mode
Torque control mode
According to pulse positioning, according to RS485 communication positioning
Size(mm) 77 x 134 x 34 Without terminal block
weight About 350g Without terminal block
Operating temperature/humidity 0~45°C, 85%RH or less Prevent condensation
Storage temperature 0~85°C, 85% or less Prevent condensation
Ambient gas Prevent corrosive gases
ST-484 images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-CLS9-FRS4-01 Manual PDF 1.6 MB Download
DINGS' Simple Tuner Pro_Force Control Version Technical Guide Line PDF 1.42 MB Download
Software Downloads List
File Name Format Size Download
DINGS' Tuner Pro v4.1.11 ZIP 5.93 MB Download
FTDI USB Installation ZIP 5.85 MB Download

DS-CLS10-FRS4

DS-OLS10-FSC images
  • 1. Input power : DC 24V-72V
  • 2. Current : 0.4 ~ 6.5A
  • 3. PWM constant current bipolar micro-stepping drive
  • 4. 2 high-speed inputs, 5 ordinary digital signal inputs, and 4 configurable digital outputs
  • 5. Equipped with RS485 communication interface, supports MODBUS/RTU protocol, and can support up to 30 sites
  • 6. Supports 0-5V analog control, pulse control, and serial communication control
DS-OLS10-FSC images

In a mobile environment, you can move left and right to see the contents (tables).

Power supply DC 24 – 72 V
Output current 6.0 A(0.4-peak) Instantaneous current
Adapted motor Encoder 2-phase bipolar stepper motor
Drive mode PWM constant current drive
I/O signals [Input]]
- Pulse, direction input
(configurable as digital input)
- 7 Digital input
- Encoder input (A, B, Z)
[Output]]
- 3 digital outputs
- Encoder signal output
(differential A, B, Z)
The rest of input /output can be freely configured via communication, except that the encoder output is fixed.
Digital input
details
/SV ON (Servo On)
/RESET (Alarm reset)
/START
(Motor start / stop)
/JOG (Motor jog)
/HOME (Zero point)
Digital output
details
/IN-POSITION
/ALARM
LED indication Status, fault
EtherCAT
Communication
Address (nodes)
RS485, up to 30 nodes MODBUS RTU protocol
baud rate : 19200bps
(default) or according to the agreement
Control mode Position control mode
Speed control mode
According to pulse
positioning, according to
RS485 communication positioning
Dimensions (mm) 156 x 97 x 33.5 Without terminal block
Weight About 376 g Without terminal block
Operating
temperature /
humidity
0~40°C, 85% RH or less Prevent condensation
Storage temperature -10~70°C, 85% RH or less Prevent condensation
Ambient gas Prevent corrosive gases
DS-OLS10-FSC images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.

2. The reliable working temperature of the driver is usually within 60°C and motor is within 80°C.

3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-CLS10-FRS4 PDF 1.86 MB Download
Software Downloads List
File Name Format Size Download
DINGS' Tuner Pro v4.1.11 ZIP 5.93 MB Download

DS-CLS10-FRS4-1A

DS-CLS10-FRS4-1A images
    1. RS-485 communication type of Closed Loop 2-Phase Step Motor Drive
    2. Input power : DC 24V - 72V
    3. Output current (peak) : 6.5A
    4. Supporting up to 30 axes connection control through MODBUS-RTU protocol communication
    5. Supporting ABS Encoder (Biss-C Type, Single-16bit / Multi-16bit)
    6. Various parameters can be set through DINGS’ Tuner Pro GUI
    7. Command mode selectable (PULSE / RS-485 communication)
    8. Certified CE and RoHS
DS-CLS10-FRS4-1A images

In a mobile environment, you can move left and right to see the contents (tables).

Power supply DC 24V – 72V ± 10%
Output current 6.5A (0 – peak) Continuing current
Adapted motor 17 bit absolute value encoder attached
Drive mode PWM constant current drive
I/O signals [Input]
- Pulse, directional input
(configurable as digital input)
- 7 digital inputs
[Output]
- 3 digital outputs
Input/output can be freely configured through communication
Digital input details /SV ON (Servo On)
/RESET (Alarm reset)
/START (Motor start/stop)
/JOG (Motor jog)
/HOME (Zero return)
Digital output details /IN-POSITION
/ALARM
LED indication Status, Fault
Communicate I/F RS485,Up to 30 nodes MODBUS RTU protocol
baud rate: 19200bps (preset)
Control mode Position control mode Based on pulse positioning and RS485 communication positioning
Dimensions (mm) 156 x 97 x 33.5 Excluding wiring terminals
Weight About 500g Excluding wiring terminals
Operating temperature / humidity 0 ~ 45℃,under 85%RH No condensation
Storage temperature 0 ~ 85℃,under 85%RH No condensation
Ambient gas Prevent corrosive gases
DS-CLS10-FRS4-1A images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.

2. The reliable working temperature of the driver is usually within 60°C and motor is within 80°C.

3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-CLS10-FRS4-1A PDF 947 KB Download

DS-CLS3-FETC-4I

DS-CLS3-FETC-4I images
  1. Input power : DC 24V-36V
  2. Output rated current (peak value) : 0.4-3A
  3. PWM constant current bipolar micro-stepping drive
  4. Support EtherCAT communication protocol, support control mode PP, PV, HM, CSP, CSV
  5. Optically isolated inputs
  6. Motor short circuit protection, under-voltage protection, over-voltage protection, overcurrent protection, etc
  7. Maximum support for 4-axis control
ST-484 images

In a mobile environment, you can move left and right to see the contents (tables).

Applied Motor Two phase open / closed loop incremental stepper motor
Power supply DC 24 ~ 36V
Output current 0.4A - 3A / phase (peak value)
Drive Method Full-bridge bipolar PWM
Initialization time 2s
Input signal 1 probe input Optocoupler input voltage H = 24 V , L = 0 – 0.8 V, Current 5 - 8 mA
3 universal input signal
Output signal 2 universal output signal Optocoupler isolation output, max. withstand voltage 30VDC,
max. saturation current 50mA
Size(mm) 144 × 106 × 31 (Excluding connectors)
Weight About 450g
Operation
Environment
Precaution Avoid dust, oil mist and corrosive gas
Humidity < 85 % RH, No condensation
Temperature 0°C ~ 40°C
Heat dissipation Install in a ventilated environment
ST-484 images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60°C and motor is within 80°C.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-CLS3-FETC-4I Manual PDF 2.86 MB Download

DS-CLS9-FETC

DS-CLS9-FRS4-01 images
  1. Input power : DC 24V-48V
  2. Max. Output current : 6.5A
  3. PWM constant current bipolar micro-stepping drive
  4. Support EtherCAT communication protocol, support control mode PP, PV, HM, CSP, CSV
  5. Optically isolated inputs
  6. Motor short circuit protection, under-voltage protection, over-voltage protection, over-current protection, etc.
  7. Exquisite design, low noise and low vibration
ST-484 images

In a mobile environment, you can move left and right to see the contents (tables).

Model DS-CLS9-FETC
Power Supply DC 24 – 48 V
Output Current 6.5 A Instantaneous current
Adapted Motor Encoder 2-phase bipolar stepper motor Size 6, 8, 11, 14, 17, 23, 24, 34
Drive Mode PWM constant current drive
I/O Signals [Input]
-High-speed inputs 2
-5 Digital input
-Encoder input (A, B, Z)
[Output]
-3 digital outputs
-Encoder signal output
(differential A, B, Z)
The rest of input/ output can be freely configured via communication, except that the encoder output is fixed.
Digital Input Details Enable, Alarm reset, Positive limit, Negative limit, Emergency stop, Origin, etc
Digital Output Details /IN-POSITION, /ALARM
Brake Brake output
LED Indication Status, fault
EtherCAT Communication Address (nodes) 1 ~ 255
Control Mode PP, PV, HM, CSP
Size (mm) 156 x 97 x 33.5 Without terminal block
Weight About 500 g Without terminal block
Operating Temperature / Humidity 0~45°C, 85% RH or less Prevent condensation
Storage Temperature 0~85°C, 85% RH or less Prevent condensation
Ambient gas Prevent corrosive gases
ST-484 images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-CLS9-FETC Manual PDF 1.29 MB Download
Software Downloads List
File Name Format Size Download
DINGS' Tuner FB RAR 1.05 MB Download
FTDI USB Installation ZIP 5.85 MB Download
XML File ZIP 6.58 KB Download

DS-CLS9-FETC-2I/2A

DS-CLS9-FETC-2I/2A images
  1. Input power : DC 24V - 48V
  2. Output rated current (peak value) : 0.4 - 6.5A
  3. Maximum support for 2-axis control
  4. Support EtherCAT communication protocol, support control mode PP, PV, TQ, HM, CSP, CSV
  5. Optically isolated inputs
  6. Motor short circuit protection, under-voltage protection, over-voltage protection, overcurrent protection, etc.
ST-484 images

In a mobile environment, you can move left and right to see the contents (tables).

Drive Model DS-CLS9-FETC-2I DS-CLS9-FETC-2A
Adapted Motor Two phase hybrid incremental stepper motor Two phase hybrid absolute value stepper motor
Power Supply DC 24 ~ 48V
Output Current 0.4A - 6.5A / phase (peak value)
Driving Method Full-bridge bipolar PWM
Initialization Time 2s
Input Signal 1 Probe Input Optocoupler input voltage H = 24 V ,
L = 0 – 0.8 V, Current 5 - 8 mA
3 Universal Input Signal
Output Signal 2 Universal Output Signal Optocoupler isolation output, max. withstand voltage 30VDC, max. saturation current 50mA
1 Circuit Brake Output Optocoupler isolation output, max. withstand voltage 30VDC, max. saturation current 500mA
Size (mm) 156 × 97 × 34 (Excluding connectors)
Weight about 500g
Operating environment Application Avoid dust, oil mist and corrosive gas
Humidity < 85% RH, no condensation
Temperature 0 ~ 40°C
Heat dissipation Install in a ventilated environment

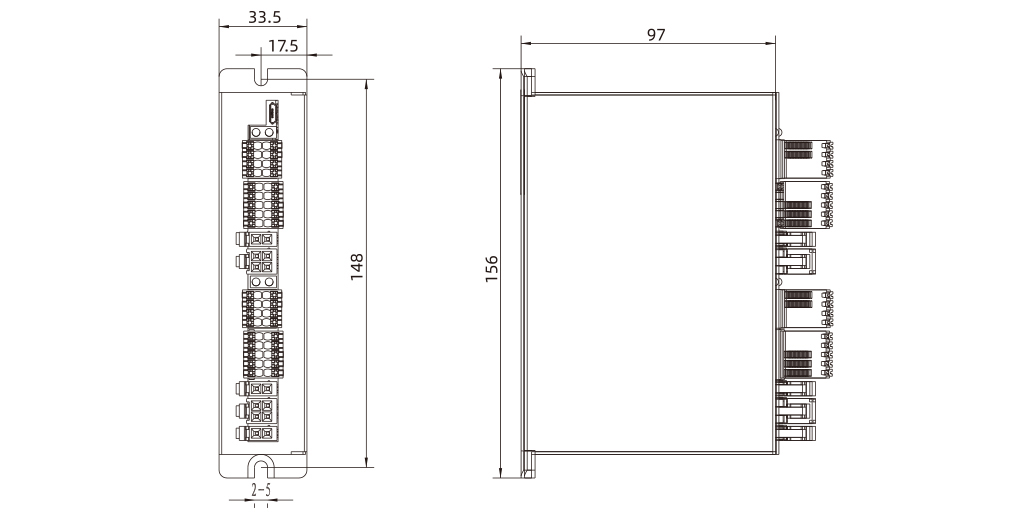

ST-484 images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60°C and motor is within 80°C.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

DS-CLS9-FCAO

DS-CLS9-FRS4-01 images
  1. Input power : DC 24V-48V
  2. Max. Output current : 6.5A
  3. PWM constant current bipolar micro-stepping drive
  4. Support CANopen communication protocol, support control mode PP, PV, HM, PT
  5. Optically isolated inputs
  6. Motor short circuit protection, under-voltage protection, over-voltage protection, over-current protection, etc.
  7. Exquisite design, low noise and low vibration
ST-484 images

In a mobile environment, you can move left and right to see the contents (tables).

Model DS-CLS9-FCAO
Adapted Motor Size 6, 8, 11, 14, 17, 23, 24, 34 2-phase hybrid stepping motor
Power Supply DC 24 – 48 V
Output Current 0.1 – 6.5 A
Driving Method Full-bridge Bipolar PWM
Initialization Time 2s
Input
Signal
2 high-speed input signals Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 - 8 mA
5 common input signals Optocoupler input voltage H = 24 V , L = 0 – 0.8 V , Current 5 - 8 mA
Onput
Signal
3 common output signals Optocoupler output, withstand voltage up to 30VDC
maximum saturation current 50mA
Size (mm) 156 × 97 × 33.5 mm
Weight About 500g
Operating
Environment
Application Avoid dust, oil mist and corrosive gas
Humidity <85% RH, no condensation
Temperature 0 ~ 40°C
Heat Dissipation Install in a ventilated environment
ST-484 images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

catalog images
manual Downloads List
File Name Format Size Download
DS-CLS9-FCAO Manual PDF 2.63 MB Download
Software Downloads List
File Name Format Size Download
DINGS' Tuner FB RAR 1.05 MB Download
FTDI USB Installation ZIP 5.85 MB Download
EDS File ZIP 8.47 KB Download

DS-OLS10-FSC

DS-OLS10-FSC images
  1. Control mode : constant speed, analog variable speed
  2. Optoelectronic isolation input function, 5-24VDC compatible input
  3. Motor short-circuit protection function
  4. Compact design, low noise, low vibration, no need for control units
DS-OLS10-FSC images

In a mobile environment, you can move left and right to see the contents (tables).

Adapted Motor Size 6, 8, 11, 14, 17, 23, 24 two-phase hybrid stepper motor
Power supply DC 24 ~ 48V
Output current 1.0A-4.5A/Phase
Drive Method Full-Bridge Bi-polar PWM driver
Input signal IN1 (Start) Signal Optocoupler input voltage H = 3.5 - 26V , L = 0 - 0.8V
On current 6-15mA
IN2 (Direction) Signal
IN3 (Speed switch) Signal
Analog Adjustment Connected to 10K potentiometer or 0~10V analog adjustment
Size(mm) 118 × 78 × 34mm
Weight About 300g
Operation
Environment
Precaution Avoid dust, oil mist and corrosive gases
Humidity < 85 % RH, No condensation
Temperature 0°C - +40°C
Cooling Installed in a ventilated environment
DS-OLS10-FSC images

1. When designs installation, please consider the size of terminals and pace required for heat dissipation.

2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃

3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range

catalog images
manual Downloads List
File Name Format Size Download
DS-OLS10-FSC Manual PDF 877.63 KB Download
