25mm PM Stepper Linear Actuator

The size 25mm PM Linear Actuator has External, Non-Captive and Kaptive version and various screw end machining and length customization is optional.

25mm PM Stepper Linear Actuators images

Motor Characteristics

In a mobile environment, you can move left and right to see the contents (tables).

25mm Frame
Polarity Bi-Polar
Linear Actuator Type External, Non-captive, Kaptive
Step Angle 7.5° 15°
Winding 5V 12V 5V 12V
Phase Current 370mA 160mA 370mA 160mA
Phase Resistance 13.5Ω 70Ω 13.5Ω 70Ω
Phase Inductance 12.5mH 65mH 9.5mH 47mH
Power Consumption 3.85W
Rotor Inertia 1.08gcm2
Insulation Class B
Insulation Resistance 100MΩ
Mass 50g

Available Lead Screw and Travel per Step

In a mobile environment, you can move left and right to see the contents (tables).

Step Angle Screw lead Travel per step Screw lead code
mm inch mm inch
7.5° 0.6096 0.024 0.0127 0.0005 AA
1.2192 0.048 0.0254 0.0010 B
2.4384 0.096 0.0508 0.0020 J
15° 0.6096 0.024 0.0254 0.0010 AA
1.2192 0.048 0.0508 0.0020 B
2.4384 0.096 0.1016 0.0040 J

Dimensional Drawings

external actuator images

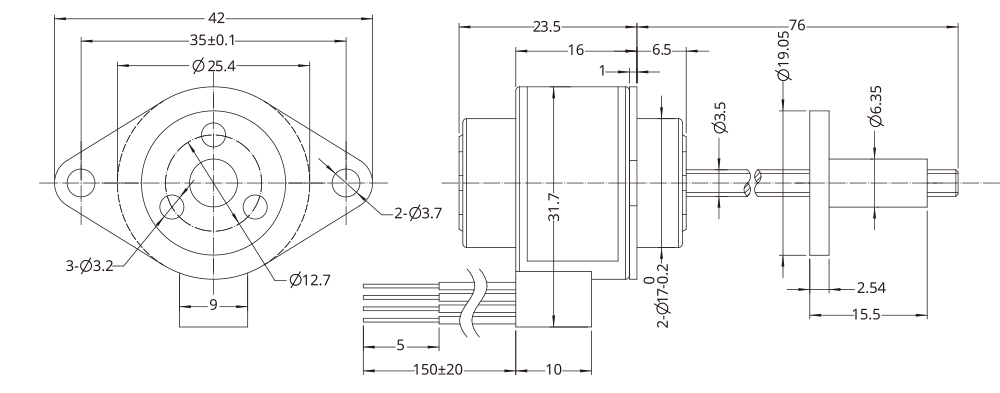

external actuator demension

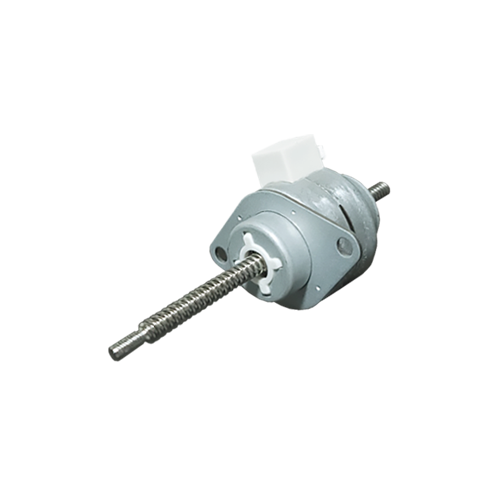

non-captive PM Stepper Linear Actuator

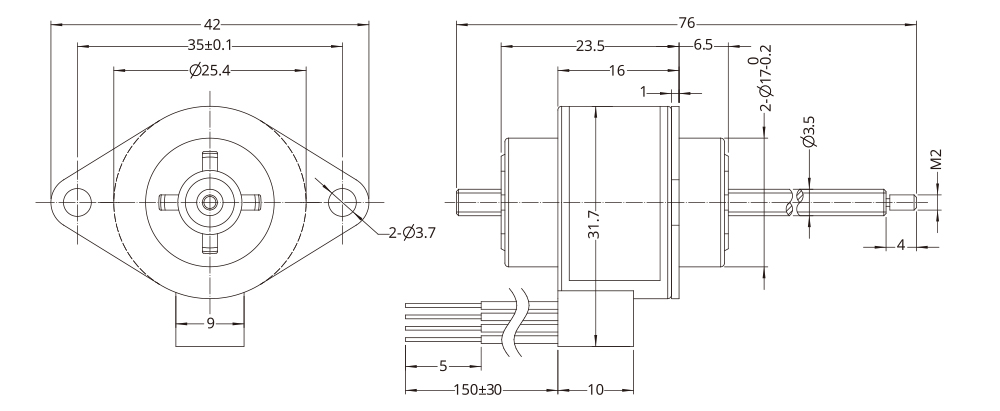

non-captive PM Stepper Linear Actuator

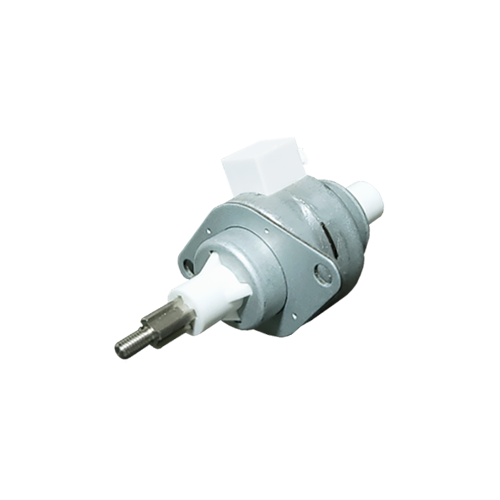

Kaptive actuator images

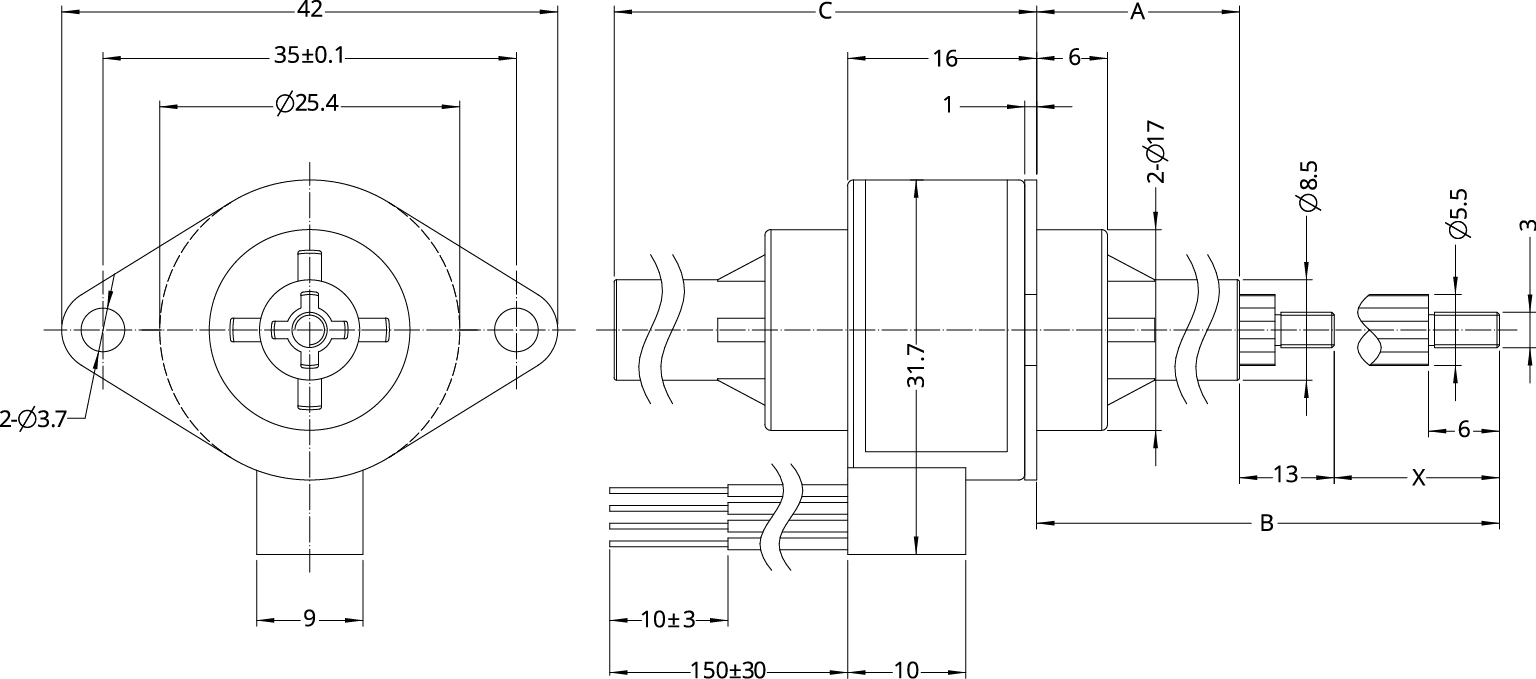

Kaptive PM Stepper Linear Actuator
Stoke X (mm) Front extension A Total extension B Body length C (Max)
13 10.5±0.25 36.5 27.5
18 15.5±0.25 46.5 32.5
25 22.5±0.25 60.5 39.5
31 28.5±0.25 72.5 45.5

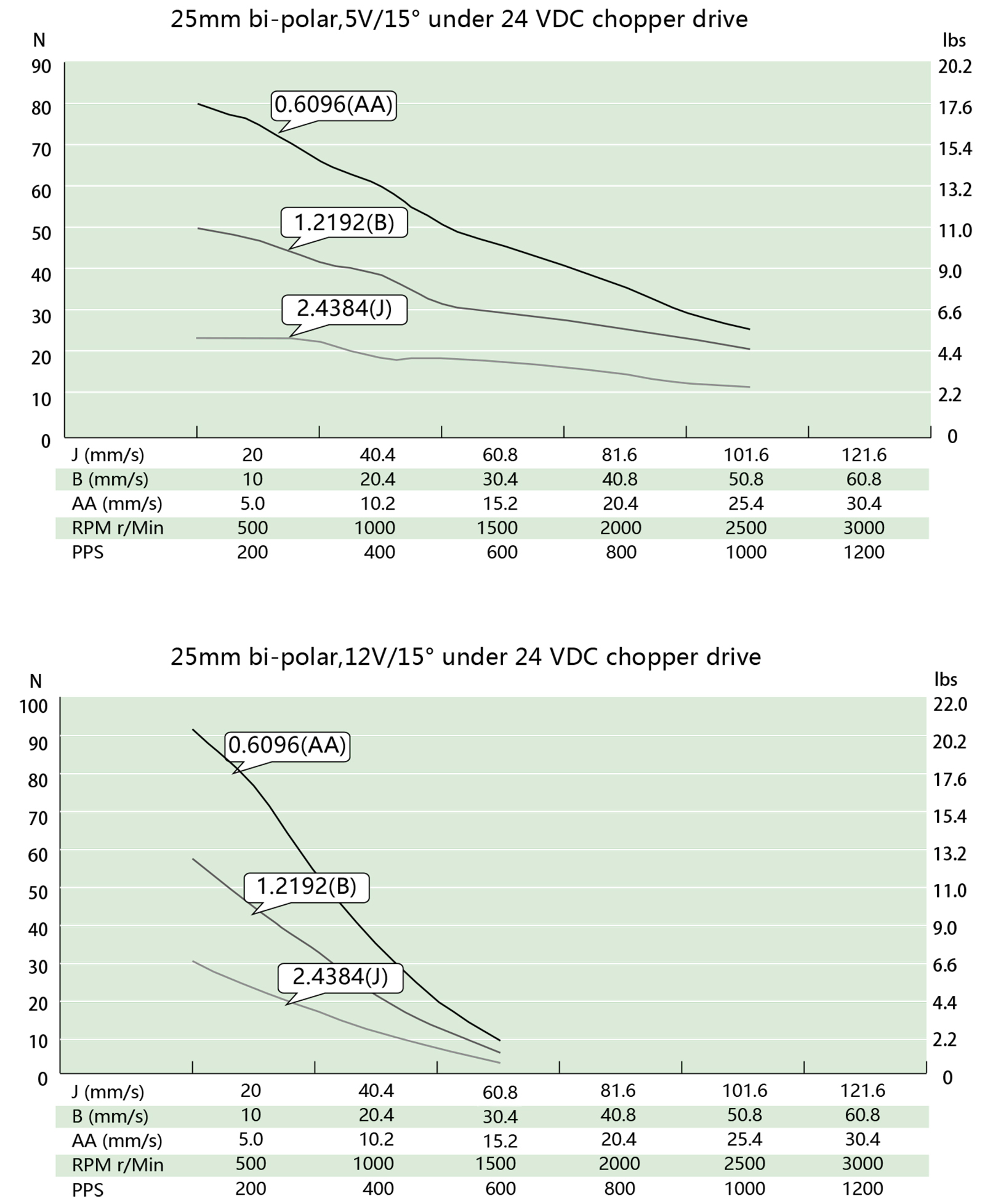

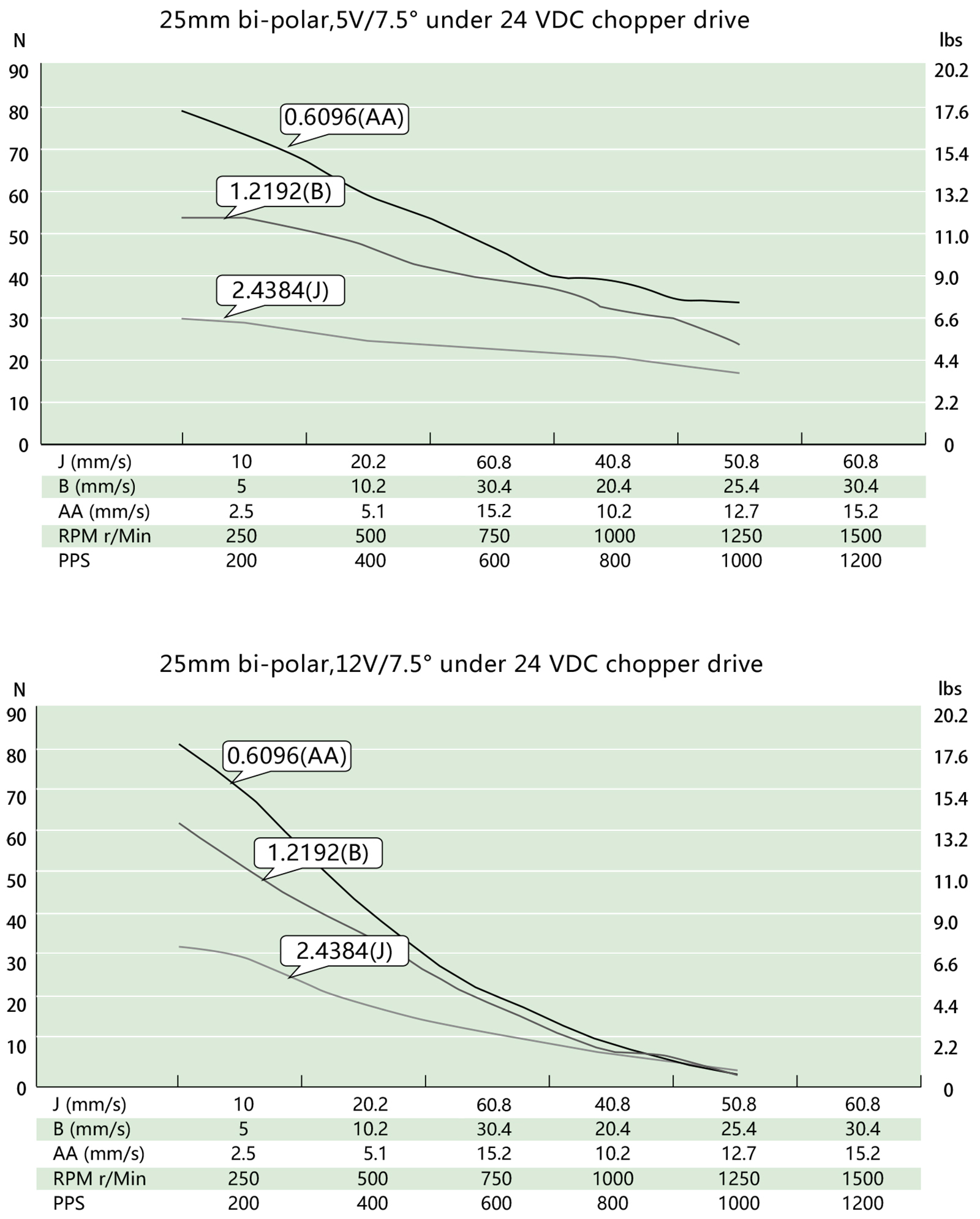

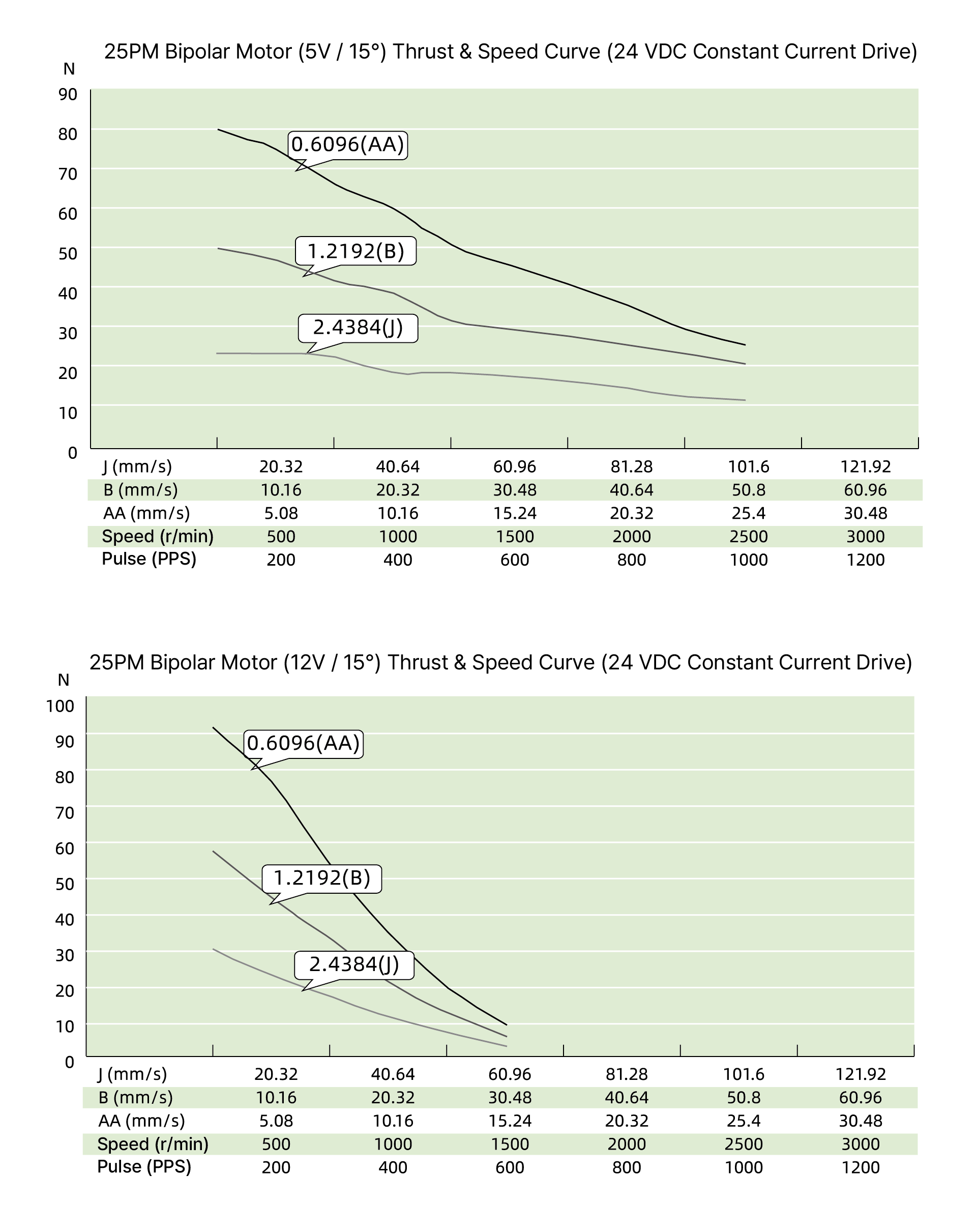

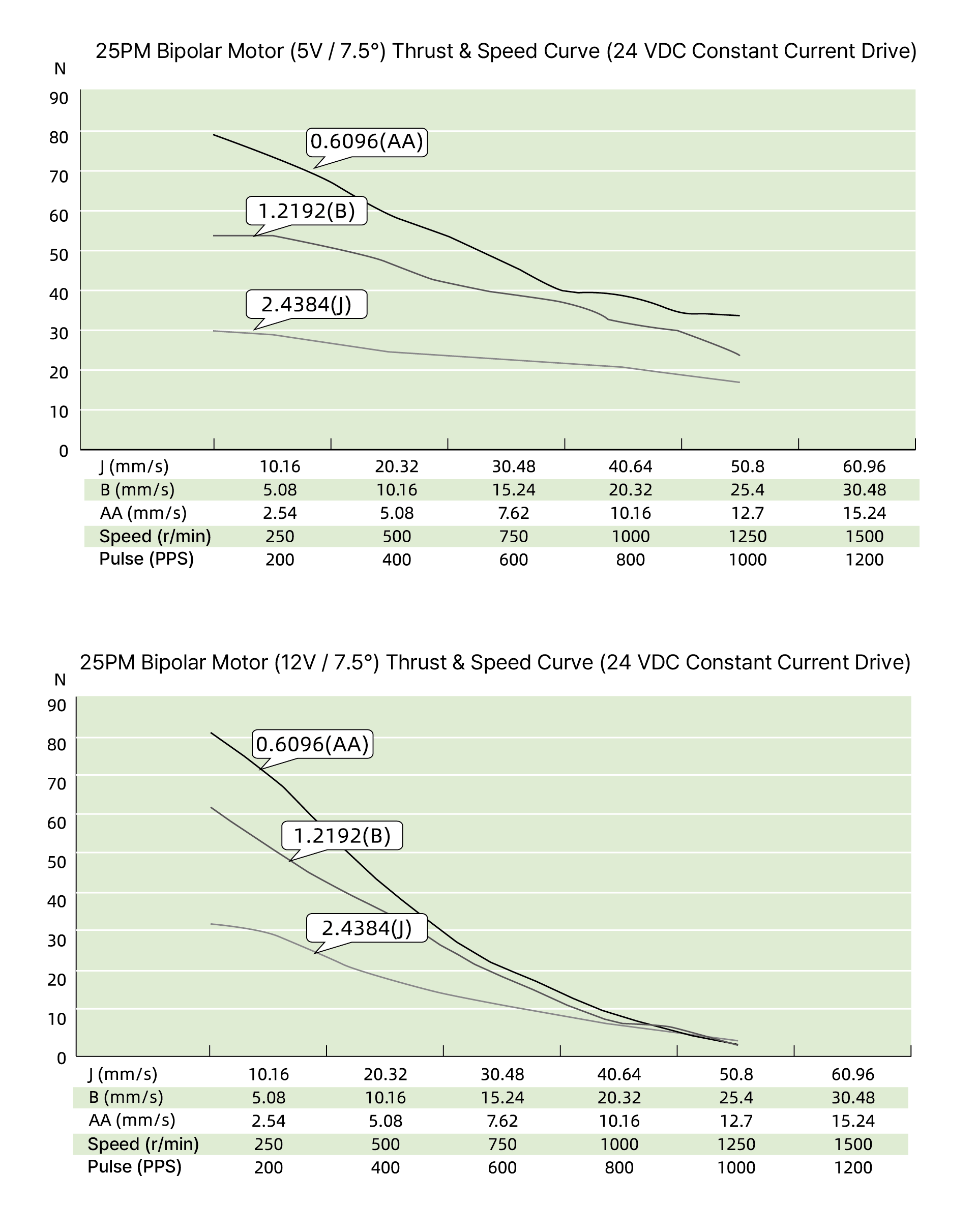

Speed Thrust Curves

speed thrust curves image
speed thrust curves image


Screw End Machining
opt screw end machining
Teflon Coating

If customer's applications require greaseless screw and nut combination, DINGS' offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in DINGS' and all types of PM linear actuators such as External, Non-Captive and Kaptive.

teflon coat
